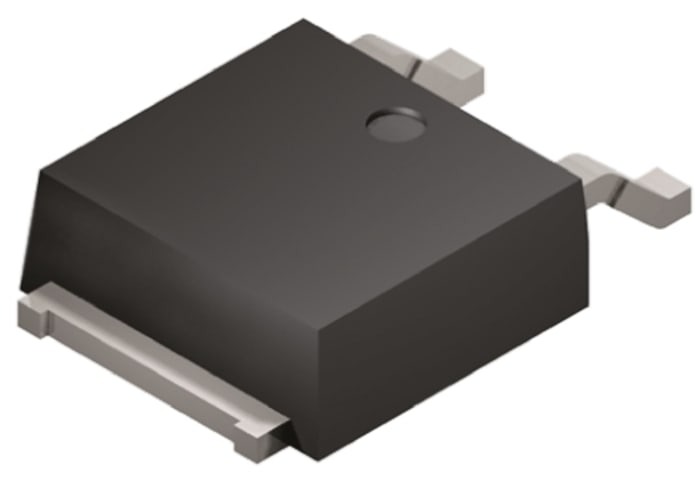

ON Semiconductor LP2950CDT-3.0RKG, LDO Regulator, 100mA, 3 V 3 + Tab-Pin, DPAK
RS Stock No. 186-9076
Brand ON Semiconductor
Manufacturers Part No. LP2950CDT-3.0RKG
Temporarily out of stock
Back order for despatch on 04/28/2021
Temporarily out of stock
$ 0.260
Each (On a Reel of 2500)
ON Semiconductor LP2950CDT-3.0RKG, LDO Regulator, 100mA, 3 V 3 + Tab-Pin, DPAK
Live stock
Temporarily out of stock
Back order for despatch on 04/28/2021
Specifications
Brand
ON Semiconductor
Regulator Type
Low Dropout Voltage
Maximum Output Current
100mA
Number of Outputs
1
Line Regulation
0.02 %
Load Regulation
0.02 %
Polarity
Positive
Mounting Type
Surface Mount
Quiescent Current
75µA
Package Type
DPAK
Pin Count
3 + Tab
Output Type
Fixed
Dimensions
6.73 x 6.22 x 2.25mm
Height
2.25mm
Maximum Input Voltage
30 V dc
Minimum Input Voltage
3.1 V
Maximum Operating Temperature
+125 °C
Automotive Standard
AEC-Q100
Length
6.73mm
Width
6.22mm
Minimum Operating Temperature
-40 °C
