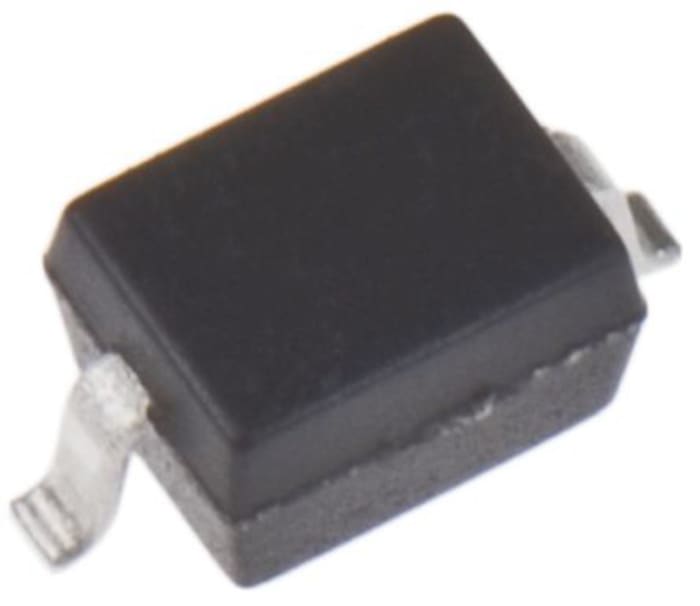

ON Semiconductor ESD7371HT1G, Uni-Directional ESD Protection Diode, 300mW, 2-Pin SOD-323
Temporarily out of stock
Back order for despatch on 06/22/2021
$ 0.079
Each (On a Reel of 3000)
Buy in bulk
| quantity | Unit price |
|---|---|
| 3000 - 6000 | $ 0.079 |
| 9000 - 15000 | $ 0.077 |
| 18000 - 21000 | $ 0.066 |
| 24000 - 42000 | $ 0.063 |
| 45000+ | $ 0.075 |
Live stock
Temporarily out of stock
Back order for despatch on 06/22/2021
Specifications
Brand
ON Semiconductor
Direction Type
Uni-Directional
Diode Configuration
Single
Maximum Clamping Voltage
20V
Minimum Breakdown Voltage
7V
Mounting Type
Surface Mount
Package Type
SOD-323
Maximum Reverse Stand-off Voltage
5.3V
Pin Count
2
Peak Pulse Power Dissipation
300mW
Maximum Peak Pulse Current
3A
ESD protection
Yes
Number of Elements per Chip
1
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
+150 °C
Width
1.35mm
Test Current
1mA
Maximum Reverse Leakage Current
50nA
Dimensions
1.8 x 1.35 x 0.9mm
Working Voltage
5.3V
Automotive Standard
AEC-Q101
Capacitance
0.7pF
Length
1.8mm
Height
0.9mm
