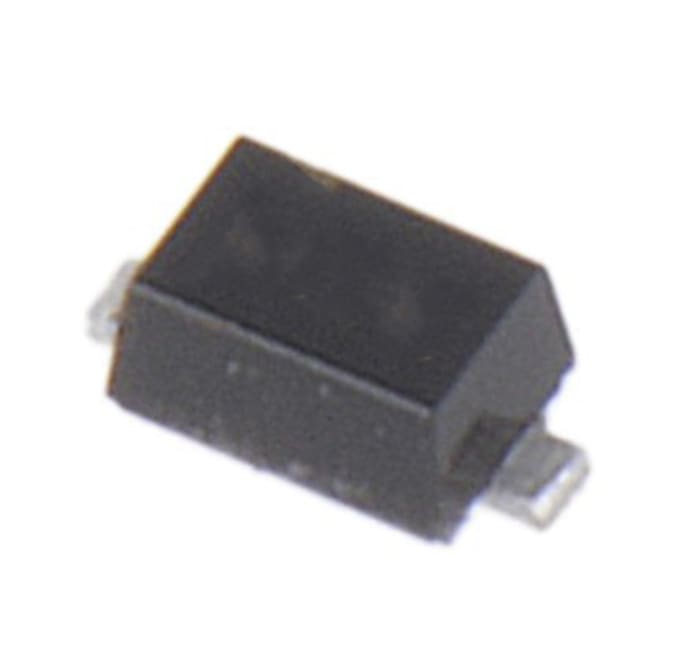

ON Semiconductor ESD7361XV2T1G, Uni-Directional ESD Protection Diode, 2-Pin SOD-523
RS Stock No. 186-9038
Brand ON Semiconductor
Manufacturers Part No. ESD7361XV2T1G
3000 in stock in the UK
3000 in stock in the UK
$ 0.086
Each (On a Reel of 3000)
ON Semiconductor ESD7361XV2T1G, Uni-Directional ESD Protection Diode, 2-Pin SOD-523
Buy in bulk
| quantity | Unit price |
|---|---|
| 3000 - 6000 | $ 0.086 |
| 9000 - 21000 | $ 0.075 |
| 24000 - 42000 | $ 0.074 |
| 45000+ | $ 0.068 |
Live stock
3000 in stock in the UK
Specifications
Brand
ON Semiconductor
Direction Type
Uni-Directional
Diode Configuration
Single
Maximum Clamping Voltage
34V
Minimum Breakdown Voltage
16.5V
Mounting Type
Surface Mount
Package Type
SOD-523
Pin Count
2
Maximum Peak Pulse Current
16A
ESD protection
Yes
Number of Elements per Chip
1
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
+125 °C
Width
0.9mm
Test Current
1mA
Maximum Reverse Leakage Current
1µA
Dimensions
1.3 x 0.9 x 0.7mm
Working Voltage
16V
Automotive Standard
AEC-Q101
Capacitance
0.55pF
Height
0.7mm
Length
1.3mm
