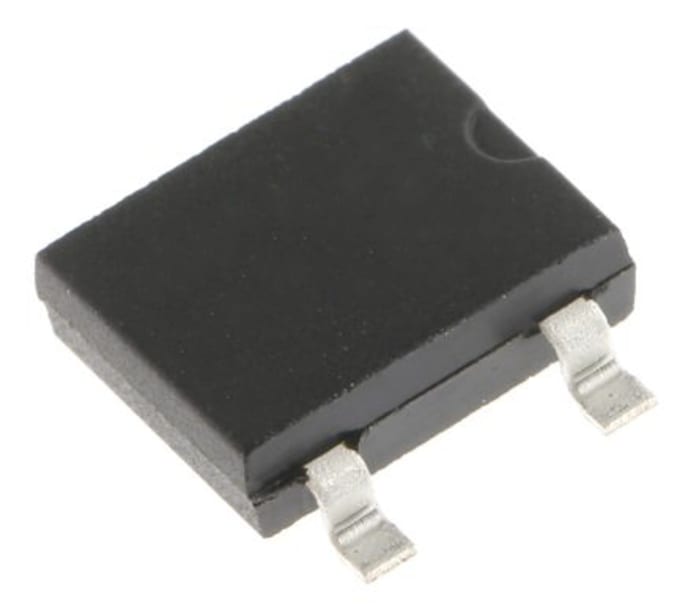

ON Semiconductor DF06S2, Bridge Rectifier, 2A 600V, 4-Pin SDIP
RS Stock No. 186-9033
Brand ON Semiconductor
Manufacturers Part No. DF06S2
2525 in stock in the UK
2525 in stock in the UK
$ 0.211
Each (On a Reel of 1500)
ON Semiconductor DF06S2, Bridge Rectifier, 2A 600V, 4-Pin SDIP
Live stock
2525 in stock in the UK
Specifications
Brand
ON Semiconductor
Peak Average Forward Current
2A
Bridge Type
Single Phase
Peak Reverse Repetitive Voltage
600V
Mounting Type
Surface Mount
Package Type
SDIP
Pin Count
4
Configuration
Single
Peak Non-Repetitive Forward Surge Current
85A
Maximum Operating Temperature
+150 °C
Minimum Operating Temperature
-55 °C
Peak Forward Voltage
1.1V
Peak Reverse Current
500µA
Length
8.51mm
Height
2.6mm
Width
6.5mm
Junction Capacitance
23pF
Dimensions
8.51 x 6.5 x 2.6mm
