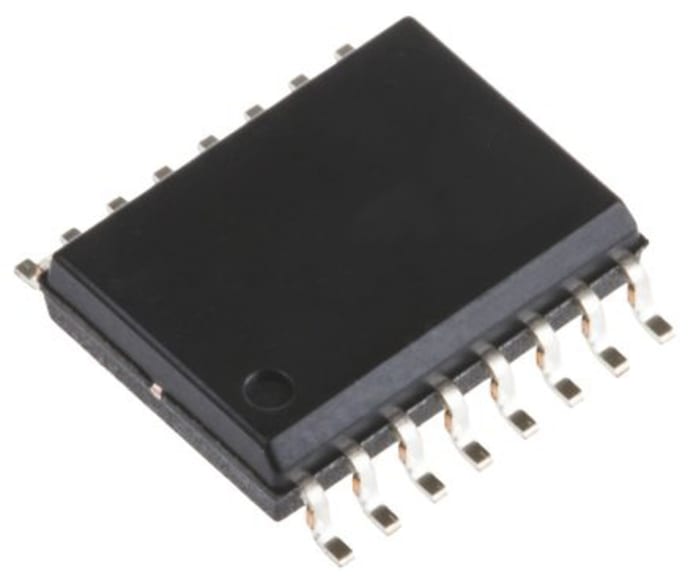

ON Semi ULN2003ADR2G NPN Darlington Pair, 500 mA 50 V HFE:1000, 16-Pin SOIC
RS Stock No. 186-8994
Brand ON Semiconductor
Manufacturers Part No. ULN2003ADR2G
1400 in stock in the UK
1400 in stock in the UK
$ 0.411
Each (In a Pack of 25)
ON Semi ULN2003ADR2G NPN Darlington Pair, 500 mA 50 V HFE:1000, 16-Pin SOIC
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.411 |
| 100 - 475 | $ 0.290 |
| 500 - 975 | $ 0.238 |
| 1000 - 2475 | $ 0.193 |
| 2500+ | $ 0.168 |
Production pack (Reel)
Live stock
1400 in stock in the UK
Specifications
Brand
ON Semiconductor
Transistor Type
NPN
Maximum Continuous Collector Current
500 mA
Maximum Collector Emitter Voltage
50 V
Package Type
SOIC
Mounting Type
Surface Mount
Pin Count
16
Transistor Configuration
Single
Configuration
Single
Number of Elements per Chip
1
Minimum DC Current Gain
1000
Maximum Collector Emitter Saturation Voltage
1.1 V dc
Maximum Collector Cut-off Current
50µA
Height
1.5mm
Width
4mm
Minimum Operating Temperature
-20 °C
Dimensions
10 x 4 x 1.5mm
Maximum Operating Temperature
+85 °C
Length
10mm
Base Current
25mA
