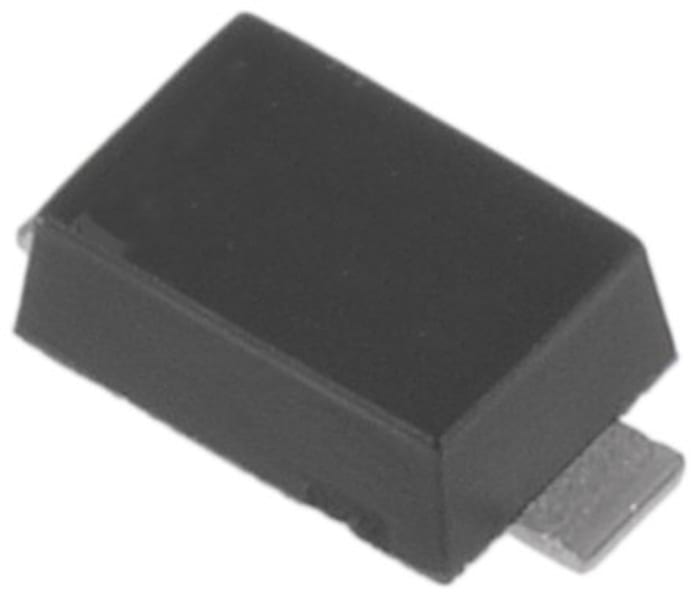

ON Semiconductor, 15V Zener Diode 5% 500 mW SMT 2-Pin SOD-123
RS Stock No. 186-8935
Brand ON Semiconductor
Manufacturers Part No. SZMMSZ5245BT1G
15000 in stock in the UK
15000 in stock in the UK
$ 0.048
Each (On a Reel of 3000)
ON Semiconductor, 15V Zener Diode 5% 500 mW SMT 2-Pin SOD-123
Buy in bulk
| quantity | Unit price |
|---|---|
| 3000 - 3000 | $ 0.048 |
| 6000 - 9000 | $ 0.047 |
| 12000 - 15000 | $ 0.046 |
| 18000 - 21000 | $ 0.044 |
| 24000+ | $ 0.043 |
Live stock
15000 in stock in the UK
Specifications
Brand
ON Semiconductor
Diode Configuration
Single
Nominal Zener Voltage
15V
Number of Elements per Chip
1
Mounting Type
Surface Mount
Maximum Power Dissipation
500 mW
Package Type
SOD-123
Zener Type
Voltage Regulator
Zener Voltage Tolerance
5%
Pin Count
2
Test Current
8.5mA
Maximum Zener Impedance
600Ω
Maximum Reverse Leakage Current
100nA
Dimensions
2.84 x 1.8 x 1.25mm
Minimum Operating Temperature
-55 °C
Forward Voltage
0.9V
Forward Current
10mA
Maximum Operating Temperature
+150 °C
Automotive Standard
AEC-Q101
