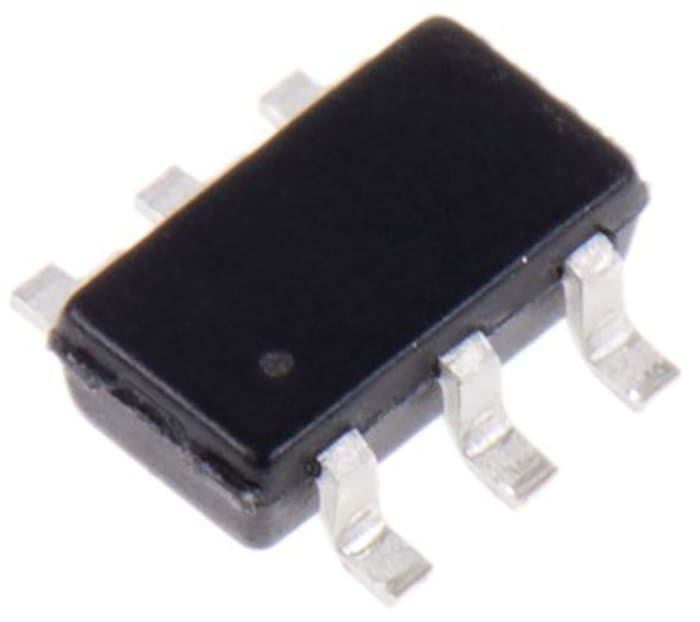

P-Channel MOSFET, 2.2 A, 20 V, 6-Pin TSOP ON Semiconductor NTGS3443T1G
RS Stock No. 186-8933
Brand ON Semiconductor
Manufacturers Part No. NTGS3443T1G
8650 in stock in the UK
8650 in stock in the UK
$ 0.332
Each (In a Pack of 25)
P-Channel MOSFET, 2.2 A, 20 V, 6-Pin TSOP ON Semiconductor NTGS3443T1G
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.332 |
| 100 - 975 | $ 0.192 |
| 1000 - 2975 | $ 0.130 |
| 3000 - 8975 | $ 0.115 |
| 9000+ | $ 0.106 |
Production pack (Reel)
Live stock
8650 in stock in the UK
Specifications
Brand
ON Semiconductor
Channel Type
P
Maximum Continuous Drain Current
2.2 A
Maximum Drain Source Voltage
20 V
Package Type
TSOP
Mounting Type
Surface Mount
Pin Count
6
Maximum Drain Source Resistance
100 mΩ
Channel Mode
Enhancement
Maximum Power Dissipation
2 W
Transistor Configuration
Single
Maximum Gate Source Voltage
+12 V
Number of Elements per Chip
1
Height
1mm
Width
3mm
Minimum Operating Temperature
-55 °C
Maximum Operating Temperature
+150 °C
Automotive Standard
AEC-Q101
Length
3.1mm
Typical Gate Charge @ Vgs
7.5 nC @ 4.5 V
