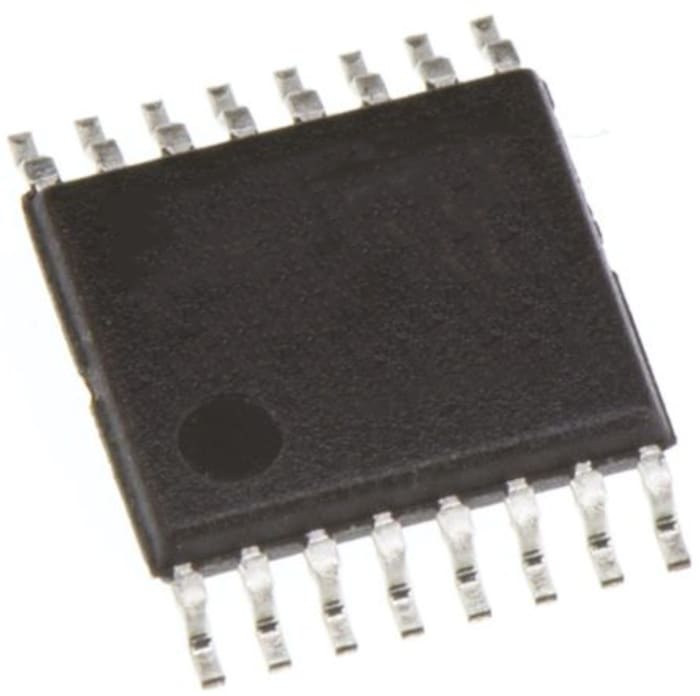

ON Semiconductor MC14504BDTR2G, Logic Level Translator Level Shifter, 16-Pin TSSOP
RS Stock No. 186-8847
Brand ON Semiconductor
Manufacturers Part No. MC14504BDTR2G
2500 in stock in the UK
2500 in stock in the UK
$ 0.538
Each (On a Reel of 2500)
ON Semiconductor MC14504BDTR2G, Logic Level Translator Level Shifter, 16-Pin TSSOP
Buy in bulk
| quantity | Unit price |
|---|---|
| 2500 - 2500 | $ 0.538 |
| 5000+ | $ 0.537 |
Live stock
2500 in stock in the UK
Specifications
Brand
ON Semiconductor
Mounting Type
Surface Mount
Package Type
TSSOP
Pin Count
16
Output Type
TTL
Logic Function
Level Shifter
Dimensions
5.1 x 4.5 x 1.05mm
Propagation Delay Test Condition
50pF
Maximum Propagation Delay Time @ Maximum CL
280 ns @ 50 pF
Maximum Operating Supply Voltage
18 V
Maximum Operating Temperature
+125 °C
Minimum Operating Supply Voltage
3 V
Minimum Operating Temperature
-55 °C
Automotive Standard
AEC-Q100
