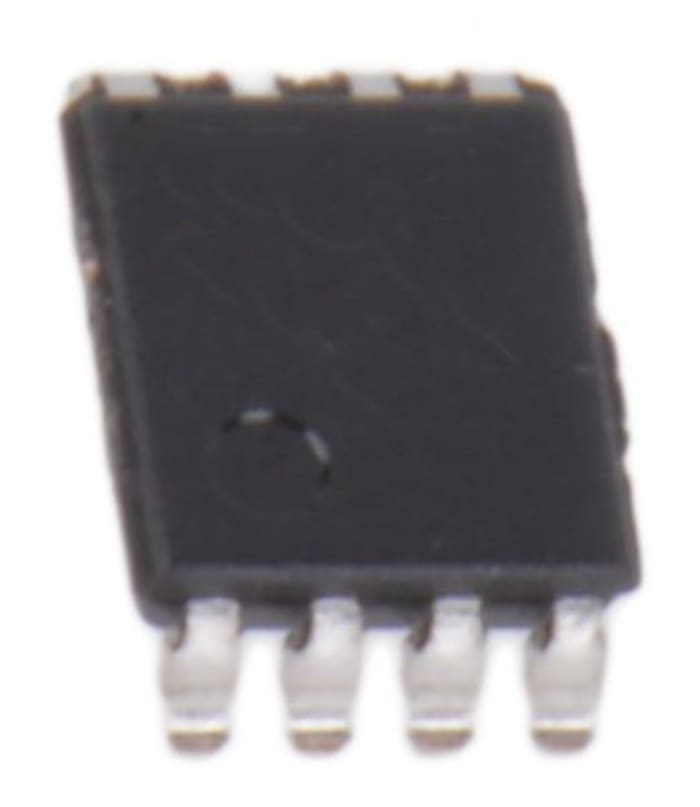

ON Semiconductor NC7WZ126K8X, Voltage Level Shifter Buffer 2 CMOS, 8-Pin US
RS Stock No. 186-8780
Brand ON Semiconductor
Manufacturers Part No. NC7WZ126K8X
4225 in stock in the UK
4225 in stock in the UK
$ 0.371
Each (In a Pack of 25)
ON Semiconductor NC7WZ126K8X, Voltage Level Shifter Buffer 2 CMOS, 8-Pin US
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.371 |
| 100 - 975 | $ 0.200 |
| 1000 - 2975 | $ 0.152 |
| 3000 - 8975 | $ 0.130 |
| 9000+ | $ 0.122 |
Production pack (Reel)
Live stock
4225 in stock in the UK
Specifications
Brand
ON Semiconductor
Mounting Type
Surface Mount
Number of Elements per Chip
2
Package Type
US
Output Type
3 State
Pin Count
8
Logic Function
Buffer
Dimensions
2.1 x 2.4 x 0.8mm
Maximum Low Level Output Current
64mA
Maximum High Level Output Current
-32mA
Translation
CMOS
Propagation Delay Test Condition
15pF
Maximum Propagation Delay Time @ Maximum CL
13 ns @ 15 pF
Maximum Operating Supply Voltage
1.65 to 5.5 V
Maximum Operating Temperature
+85 °C
Minimum Operating Supply Voltage
1.65 V
Minimum Operating Temperature
-40 °C
