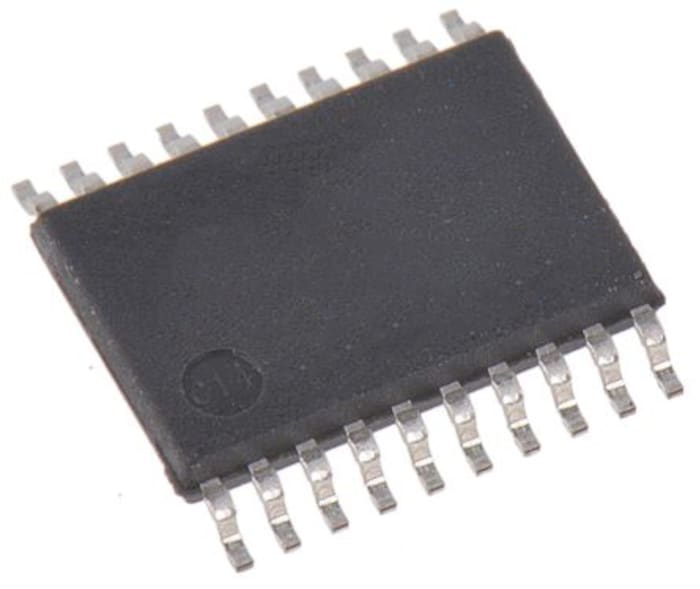

ON Semiconductor 74ACT244MTCX, Voltage Level Shifter Buffer 2, 20-Pin TSSOP
RS Stock No. 186-8742
Brand ON Semiconductor
Manufacturers Part No. 74ACT244MTCX
3550 in stock in the UK
3550 in stock in the UK
$ 0.504
Each (In a Pack of 25)
ON Semiconductor 74ACT244MTCX, Voltage Level Shifter Buffer 2, 20-Pin TSSOP
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.504 |
| 100 - 975 | $ 0.317 |
| 1000 - 2475 | $ 0.302 |
| 2500 - 9975 | $ 0.220 |
| 10000+ | $ 0.196 |
Production pack (Reel)
Live stock
3550 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Family
ACT
Mounting Type
Surface Mount
Number of Elements per Chip
2
Package Type
TSSOP
Pin Count
20
Output Type
3 State
Dimensions
6.6 x 4.5 x 1.05mm
Logic Function
Buffer
Maximum Low Level Output Current
24mA
Maximum High Level Output Current
-24mA
Propagation Delay Test Condition
50pF
Maximum Propagation Delay Time @ Maximum CL
10 ns @ 50 pF
Maximum Operating Supply Voltage
2 to 6 V
Maximum Operating Temperature
+85 °C
Minimum Operating Supply Voltage
2 V
Minimum Operating Temperature
-40 °C
