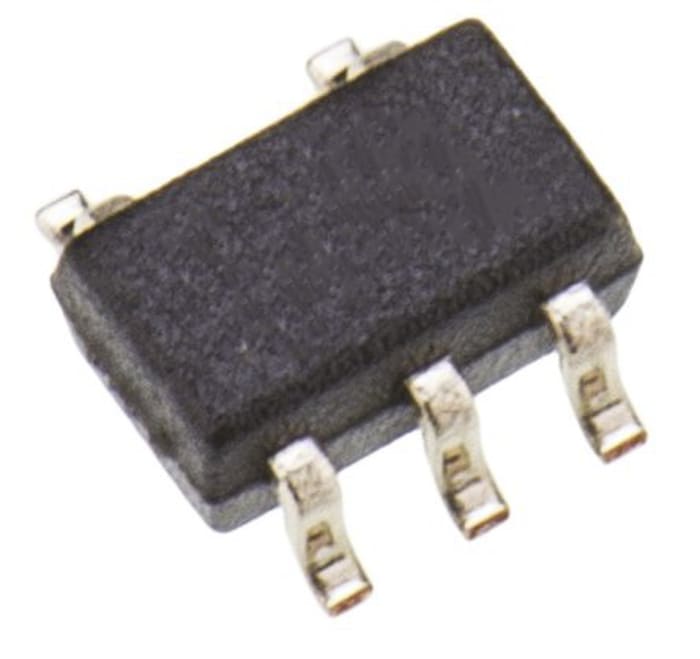

ON Semiconductor NC7S04P5X 1-Input Inverter Logic Gate, 5-Pin SC-70
RS Stock No. 186-8730
Brand ON Semiconductor
Manufacturers Part No. NC7S04P5X
4075 in stock in the UK
4075 in stock in the UK
$ 0.262
Each (In a Pack of 25)
ON Semiconductor NC7S04P5X 1-Input Inverter Logic Gate, 5-Pin SC-70
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.262 |
| 100 - 975 | $ 0.111 |
| 1000 - 2975 | $ 0.086 |
| 3000 - 8975 | $ 0.067 |
| 9000+ | $ 0.059 |
Production pack (Reel)
Live stock
4075 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Function
Inverter
Mounting Type
Surface Mount
Number Of Elements
1
Number of Inputs per Gate
1
Package Type
SC-70
Pin Count
5
Input Type
CMOS
Maximum Operating Supply Voltage
6 V
Maximum High Level Output Current
-2.6mA
Maximum Propagation Delay Time @ Maximum CL
125 ns @ 50 pF
Minimum Operating Supply Voltage
2 V
Maximum Low Level Output Current
2.6mA
Height
1mm
Width
1.35mm
Minimum Operating Temperature
-40 °C
Dimensions
2.2 x 1.35 x 1mm
Maximum Operating Temperature
+85 °C
Output Type
CMOS
Propagation Delay Test Condition
50pF
Length
2.2mm
