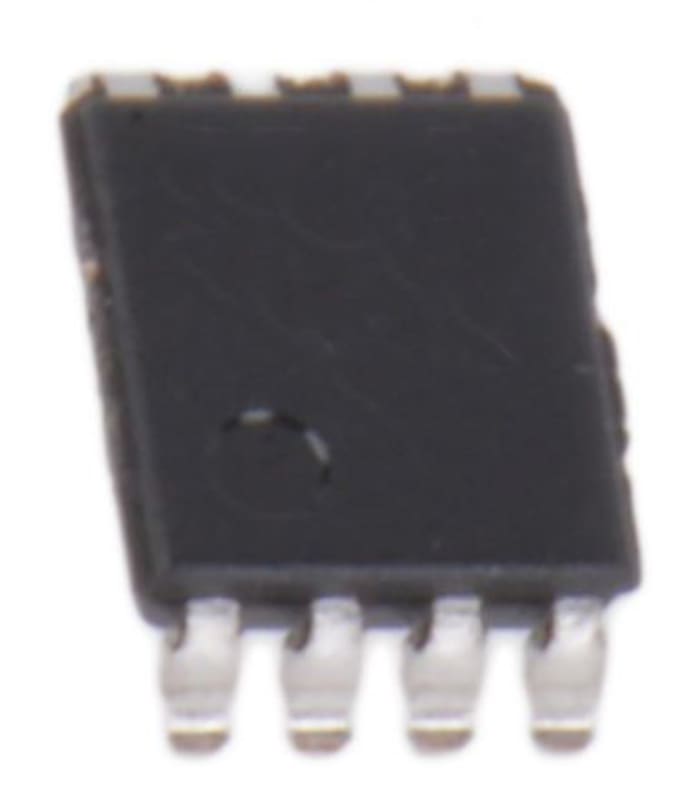

ON Semiconductor NC7NZ04K8X Inverter Logic Gate, 8-Pin US
RS Stock No. 186-8710
Brand ON Semiconductor
Manufacturers Part No. NC7NZ04K8X
4375 in stock in the UK
4375 in stock in the UK
$ 0.326
Each (In a Pack of 25)
ON Semiconductor NC7NZ04K8X Inverter Logic Gate, 8-Pin US
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.326 |
| 100 - 975 | $ 0.183 |
| 1000 - 2975 | $ 0.149 |
| 3000 - 8975 | $ 0.130 |
| 9000+ | $ 0.120 |
Production pack (Reel)
Live stock
4375 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Function
Inverter
Mounting Type
Surface Mount
Package Type
US
Pin Count
8
Input Type
CMOS
Maximum Operating Supply Voltage
5.5 V
Maximum High Level Output Current
-32mA
Maximum Propagation Delay Time @ Maximum CL
5 ns @ 50 pF
Minimum Operating Supply Voltage
1.65 V
Maximum Low Level Output Current
32mA
Height
0.8mm
Width
2.4mm
Minimum Operating Temperature
-40 °C
Dimensions
2.1 x 2.4 x 0.8mm
Maximum Operating Temperature
+85 °C
Propagation Delay Test Condition
50pF
Length
2.1mm
