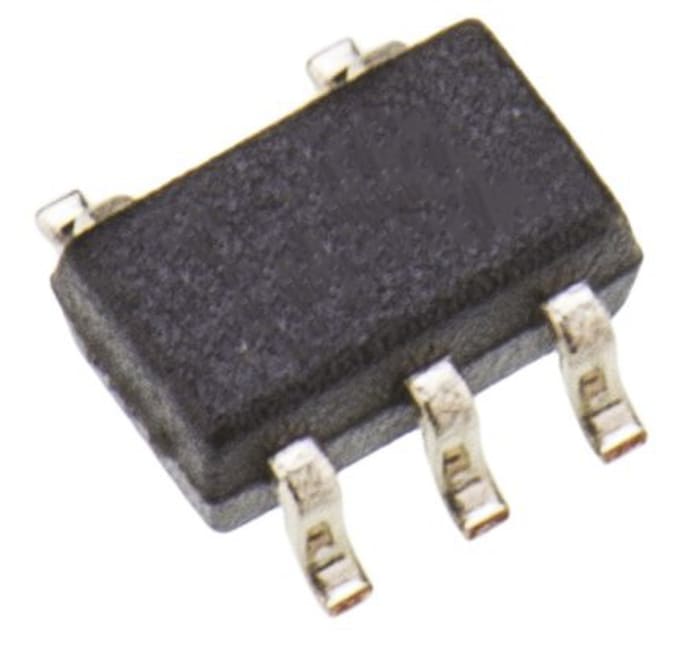

ON Semiconductor NLV17SZ17DFT2G Logic Gate, 5-Pin SC-70
RS Stock No. 186-8658
Brand ON Semiconductor
Manufacturers Part No. NLV17SZ17DFT2G
5825 in stock in the UK
5825 in stock in the UK
$ 0.338
Each (In a Pack of 25)
ON Semiconductor NLV17SZ17DFT2G Logic Gate, 5-Pin SC-70
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.338 |
| 100 - 975 | $ 0.188 |
| 1000 - 2975 | $ 0.141 |
| 3000 - 8975 | $ 0.122 |
| 9000+ | $ 0.114 |
Production pack (Reel)
Live stock
5825 in stock in the UK
Specifications
Brand
ON Semiconductor
Mounting Type
Surface Mount
Number Of Elements
1
Package Type
SC-70
Pin Count
5
Input Type
Single
Maximum Operating Supply Voltage
5.5 V
Maximum High Level Output Current
-32mA
Maximum Propagation Delay Time @ Maximum CL
7.5 ns @ 50 pF
Minimum Operating Supply Voltage
1.65 V
Maximum Low Level Output Current
32mA
Minimum Operating Temperature
-55 °C
Dimensions
2.2 x 1.35 x 1mm
Maximum Operating Temperature
+125 °C
Output Type
Schmitt Trigger
Propagation Delay Test Condition
50pF
Automotive Standard
AEC-Q100
Length
2.2mm
Height
1mm
Width
1.35mm
