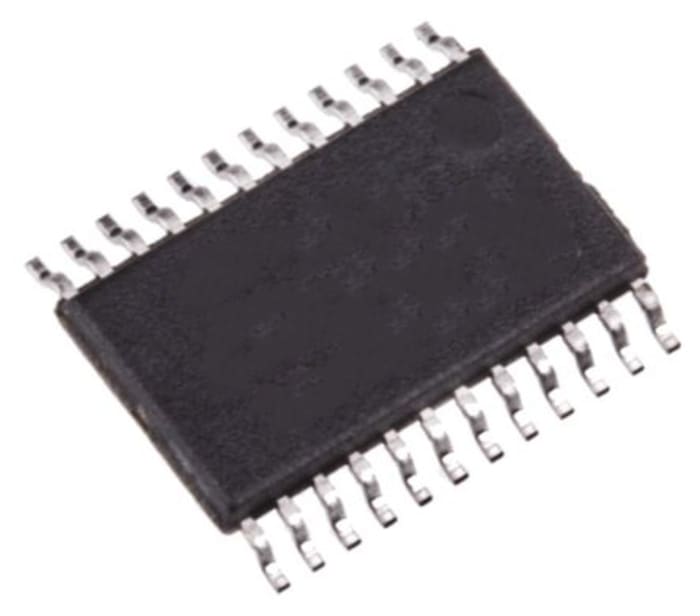

ON Semiconductor MC74LVX4245DTG, Voltage Level Shifter Translating Transceiver 1, 24-Pin TSSOP
RS Stock No. 186-8545
Brand ON Semiconductor
Manufacturers Part No. MC74LVX4245DTG
50 in stock in the UK
50 in stock in the UK
$ 1.652
Each (In a Pack of 5)
ON Semiconductor MC74LVX4245DTG, Voltage Level Shifter Translating Transceiver 1, 24-Pin TSSOP
Buy in bulk
| quantity | Unit price |
|---|---|
| 5 - 5 | $ 1.652 |
| 10 - 95 | $ 1.410 |
| 100 - 495 | $ 1.085 |
| 500 - 995 | $ 0.961 |
| 1000+ | $ 0.760 |
Production pack (Tube)
Live stock
50 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Family
LVX
Mounting Type
Surface Mount
Package Type
TSSOP
Number of Elements per Chip
1
Pin Count
24
Output Type
TTL
Dimensions
7.9 x 4.5 x 1.05mm
Logic Function
Translating Transceiver
Maximum Low Level Output Current
8mA
Maximum High Level Output Current
-8mA
Propagation Delay Test Condition
50pF
Maximum Propagation Delay Time @ Maximum CL
10 ns @ 50 pF
Maximum Operating Supply Voltage
4.5 to 5.5 V
Maximum Operating Temperature
+85 °C
Minimum Operating Supply Voltage
4.5 V
Automotive Standard
AEC-Q100
Minimum Operating Temperature
-40 °C
