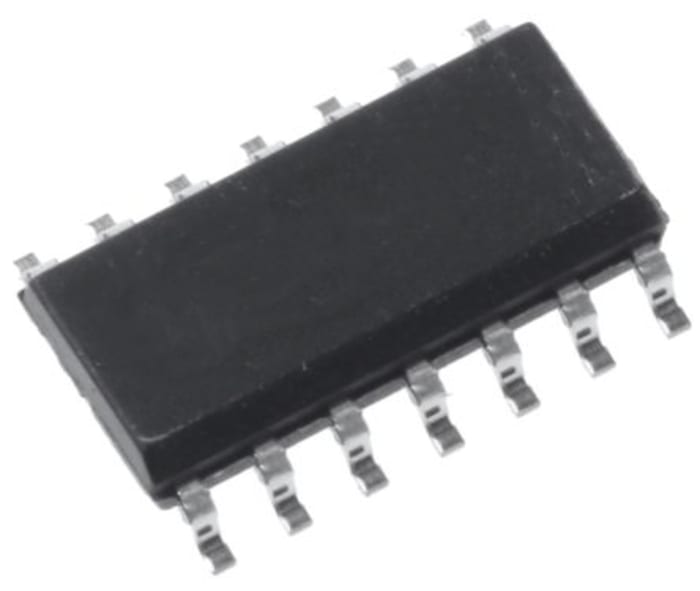

ON Semiconductor MC74AC00DG, Quad 2-Input NAND Logic Gate, 14-Pin SOIC
RS Stock No. 186-8525
Brand ON Semiconductor
Manufacturers Part No. MC74AC00DG
200 in stock in the UK
200 in stock in the UK
$ 0.325
Each (In a Pack of 25)
ON Semiconductor MC74AC00DG, Quad 2-Input NAND Logic Gate, 14-Pin SOIC
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.325 |
| 100 - 975 | $ 0.181 |
| 1000 - 2475 | $ 0.136 |
| 2500 - 9975 | $ 0.128 |
| 10000+ | $ 0.124 |
Production pack (Tube)
Live stock
200 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Function
NAND
Mounting Type
Surface Mount
Number Of Elements
4
Number of Inputs per Gate
2
Package Type
SOIC
Pin Count
14
Logic Family
AC
Input Type
CMOS
Maximum Operating Supply Voltage
6 V
Maximum High Level Output Current
-24mA
Maximum Propagation Delay Time @ Maximum CL
11 ns @ 50 pF
Minimum Operating Supply Voltage
2 V
Maximum Low Level Output Current
24mA
Minimum Operating Temperature
-55 °C
Dimensions
8.75 x 4 x 1.5mm
Height
1.5mm
Width
4mm
Maximum Operating Temperature
+125 °C
Output Type
CMOS
Propagation Delay Test Condition
50pF
Length
8.75mm
