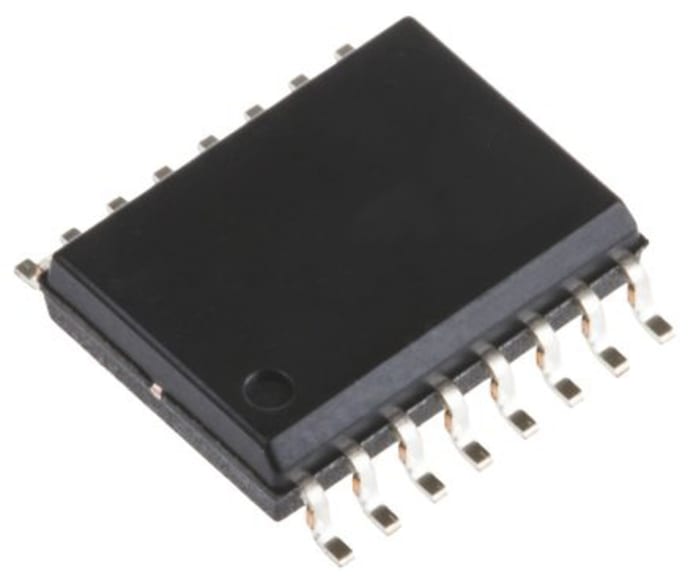

ON Semiconductor MC14572UBDG, Hex Logic Gate, 16-Pin SOIC
RS Stock No. 186-8470
Brand ON Semiconductor
Manufacturers Part No. MC14572UBDG
125 in stock in the UK
125 in stock in the UK
$ 0.534
Each (In a Pack of 25)
ON Semiconductor MC14572UBDG, Hex Logic Gate, 16-Pin SOIC
Production pack (Tube)
Live stock
125 in stock in the UK
Specifications
Brand
ON Semiconductor
Mounting Type
Surface Mount
Number Of Elements
6
Package Type
SOIC
Pin Count
16
Input Type
CMOS
Maximum Operating Supply Voltage
18 V dc
Maximum Propagation Delay Time @ Maximum CL
180 ns @ 50 pF
Minimum Operating Supply Voltage
3 V dc
Height
1.5mm
Width
4mm
Minimum Operating Temperature
-55 °C
Dimensions
10 x 4 x 1.5mm
Maximum Operating Temperature
+125 °C
Output Type
TTL
Propagation Delay Test Condition
50pF
Automotive Standard
AEC-Q100
Length
10mm
