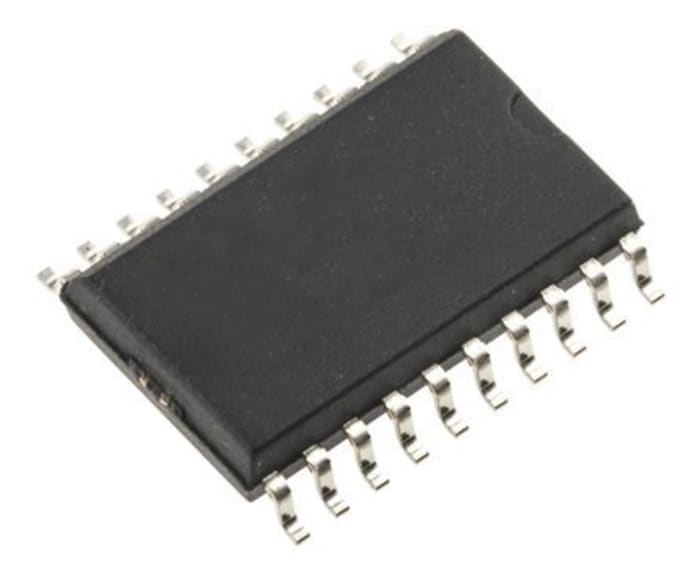

ON Semiconductor 74LCX541WM, Voltage Level Shifter Buffer 1 CMOS, 20-Pin SOIC
RS Stock No. 186-8463
Brand ON Semiconductor
Manufacturers Part No. 74LCX541WM
1580 in stock in the UK
1580 in stock in the UK
$ 0.773
Each (In a Pack of 10)
ON Semiconductor 74LCX541WM, Voltage Level Shifter Buffer 1 CMOS, 20-Pin SOIC
Buy in bulk
| quantity | Unit price |
|---|---|
| 10 - 90 | $ 0.773 |
| 100 - 490 | $ 0.498 |
| 500 - 990 | $ 0.473 |
| 1000 - 2490 | $ 0.361 |
| 2500+ | $ 0.324 |
Production pack (Tube)
Live stock
1580 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Family
LCX
Mounting Type
Surface Mount
Number of Elements per Chip
1
Package Type
SOIC
Output Type
3 State
Pin Count
20
Logic Function
Buffer
Dimensions
13 x 7.6 x 2.34mm
Maximum Low Level Output Current
24mA
Maximum High Level Output Current
-24mA
Translation
CMOS
Propagation Delay Test Condition
50pF
Maximum Propagation Delay Time @ Maximum CL
7.5 ns @ 50 pF
Maximum Operating Supply Voltage
2 to 3.6 V
Maximum Operating Temperature
+85 °C
Minimum Operating Supply Voltage
2 V
Automotive Standard
AEC-Q100
Minimum Operating Temperature
-40 °C
