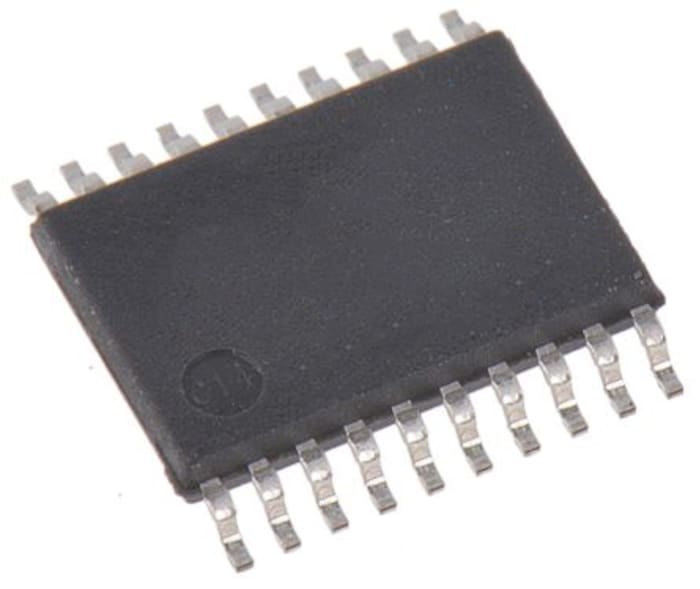

ON Semiconductor 74LCX245MTCX, Voltage Level Shifter 1 Bi-Directional, 20-Pin TSSOP
RS Stock No. 186-8424
Brand ON Semiconductor
Manufacturers Part No. 74LCX245MTCX
1250 in stock in the UK
1250 in stock in the UK
$ 0.491
Each (In a Pack of 25)
ON Semiconductor 74LCX245MTCX, Voltage Level Shifter 1 Bi-Directional, 20-Pin TSSOP
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.491 |
| 100 - 475 | $ 0.371 |
| 500 - 975 | $ 0.317 |
| 1000 - 2475 | $ 0.252 |
| 2500+ | $ 0.230 |
Production pack (Reel)
Live stock
1250 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Family
LCX
Mounting Type
Surface Mount
Number of Elements per Chip
1
Package Type
TSSOP
Pin Count
20
Output Type
3 State
Dimensions
6.6 x 4.5 x 1.05mm
Maximum Low Level Output Current
24mA
Maximum High Level Output Current
-24mA
Translation
Bi-Directional
Propagation Delay Test Condition
50pF
Maximum Propagation Delay Time @ Maximum CL
8 ns @ 50 pF
Maximum Operating Supply Voltage
2 to 3.6 V
Maximum Operating Temperature
+85 °C
Minimum Operating Supply Voltage
2 V
Minimum Operating Temperature
-40 °C
