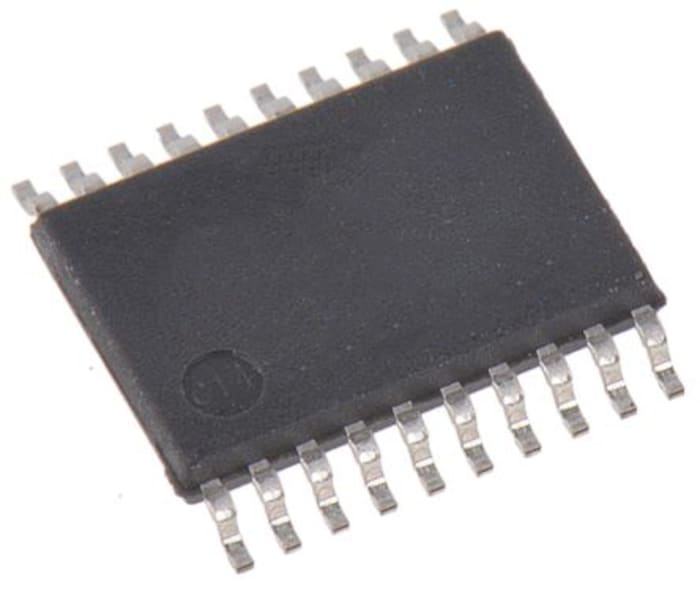

ON Semiconductor 74VHC541MTCX, Voltage Level Shifter Buffer 1, 20-Pin TSSOP
RS Stock No. 186-8384
Brand ON Semiconductor
Manufacturers Part No. 74VHC541MTCX
7375 in stock in the UK
7375 in stock in the UK
$ 0.491
Each (In a Pack of 25)
ON Semiconductor 74VHC541MTCX, Voltage Level Shifter Buffer 1, 20-Pin TSSOP
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.491 |
| 100 - 975 | $ 0.443 |
| 1000 - 2475 | $ 0.400 |
| 2500 - 9975 | $ 0.376 |
| 10000+ | $ 0.336 |
Production pack (Reel)
Live stock
7375 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Family
VHC
Mounting Type
Surface Mount
Number of Elements per Chip
1
Package Type
TSSOP
Pin Count
20
Output Type
3 State
Logic Function
Buffer
Dimensions
6.6 x 4.5 x 1.05mm
Maximum Low Level Output Current
8mA
Maximum High Level Output Current
-8mA
Propagation Delay Test Condition
50pF
Maximum Propagation Delay Time @ Maximum CL
12 ns @ 50 pF
Maximum Operating Supply Voltage
2 to 5.5 V
Maximum Operating Temperature
+85 °C
Minimum Operating Supply Voltage
2 V
Minimum Operating Temperature
-40 °C
