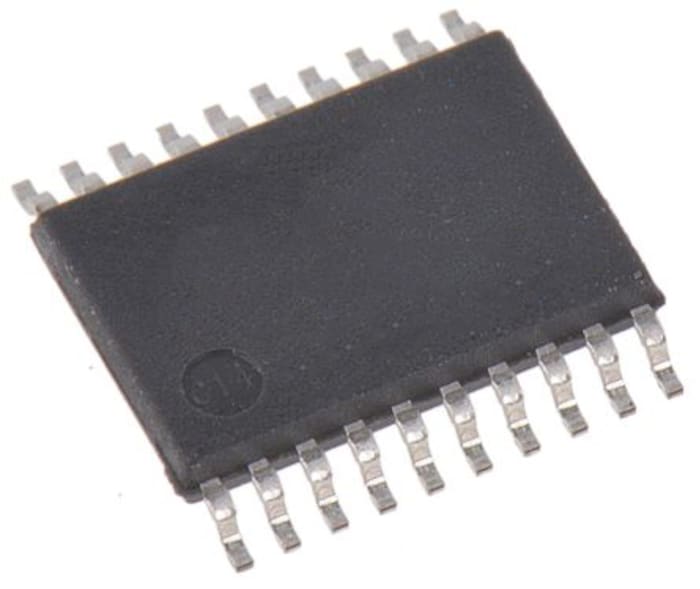

ON Semiconductor 74LCX244MTC, Voltage Level Shifter Buffer 2 CMOS, 20-Pin TSSOP
RS Stock No. 186-8366
Brand ON Semiconductor
Manufacturers Part No. 74LCX244MTC
Temporarily out of stock
Temporarily out of stock
$ 0.495
Each (In a Pack of 25)
ON Semiconductor 74LCX244MTC, Voltage Level Shifter Buffer 2 CMOS, 20-Pin TSSOP
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.495 |
| 100 - 975 | $ 0.294 |
| 1000 - 2475 | $ 0.227 |
| 2500 - 9975 | $ 0.208 |
| 10000+ | $ 0.184 |
Production pack (Tube)
Live stock
Temporarily out of stock
Specifications
Brand
ON Semiconductor
Logic Family
LCX
Mounting Type
Surface Mount
Number of Elements per Chip
2
Package Type
TSSOP
Pin Count
20
Output Type
3 State
Logic Function
Buffer
Dimensions
6.6 x 4.5 x 1.05mm
Maximum Low Level Output Current
24mA
Maximum High Level Output Current
-24mA
Translation
CMOS
Propagation Delay Test Condition
50pF
Maximum Propagation Delay Time @ Maximum CL
7.5 ns @ 50 pF
Maximum Operating Supply Voltage
2 to 3.6 V
Maximum Operating Temperature
+85 °C
Minimum Operating Supply Voltage
2 V
Minimum Operating Temperature
-40 °C
