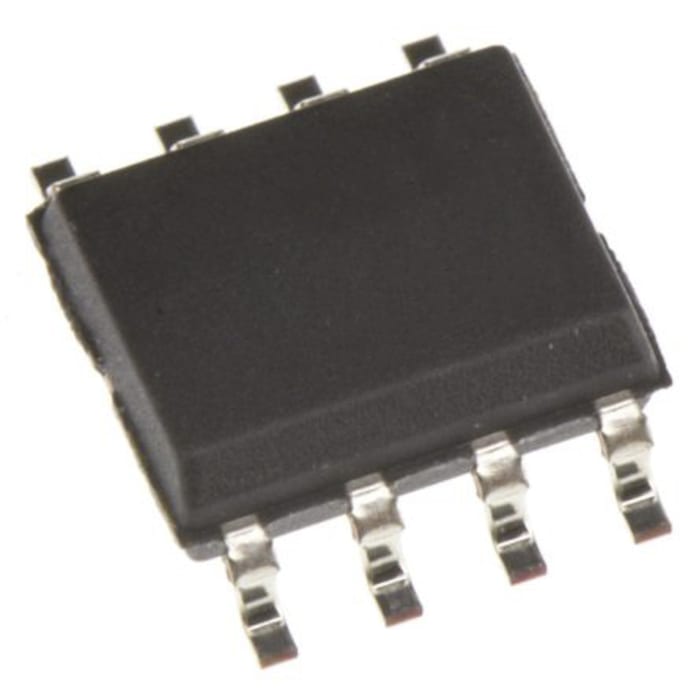

ON Semiconductor MC100EL01DG 4-Input OR/NOR Logic Gate, 8-Pin SOIC
RS Stock No. 186-8347
Brand ON Semiconductor
Manufacturers Part No. MC100EL01DG
546 in stock in the UK
546 in stock in the UK
$ 6.230
Each (In a Pack of 2)
ON Semiconductor MC100EL01DG 4-Input OR/NOR Logic Gate, 8-Pin SOIC
Buy in bulk
| quantity | Unit price |
|---|---|
| 2 - 8 | $ 6.230 |
| 10 - 98 | $ 5.284 |
| 100 - 248 | $ 4.572 |
| 250 - 498 | $ 4.344 |
| 500+ | $ 3.887 |
Production pack (Tube)
Live stock
546 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Function
OR/NOR
Mounting Type
Surface Mount
Number Of Elements
1
Number of Inputs per Gate
4
Package Type
SOIC
Pin Count
8
Logic Family
ECL
Input Type
ECL
Maximum Operating Supply Voltage
5.7 V
Minimum Operating Supply Voltage
4.2 V
Height
1.5mm
Width
4mm
Minimum Operating Temperature
-40 °C
Dimensions
5 x 4 x 1.5mm
Maximum Operating Temperature
+85 °C
Output Type
ECL
Length
5mm
