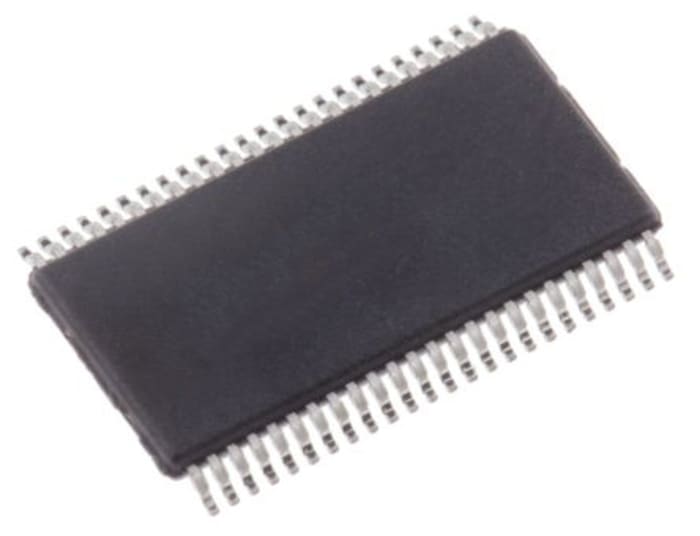

ON Semiconductor 74LCX16245MTDX, Voltage Level Shifter 1 Bi-Directional, 48-Pin TSSOP
RS Stock No. 186-8337
Brand ON Semiconductor
Manufacturers Part No. 74LCX16245MTDX
2580 in stock in the UK
2580 in stock in the UK
$ 1.156
Each (In a Pack of 10)
ON Semiconductor 74LCX16245MTDX, Voltage Level Shifter 1 Bi-Directional, 48-Pin TSSOP
Buy in bulk
| quantity | Unit price |
|---|---|
| 10 - 90 | $ 1.156 |
| 100 - 490 | $ 0.885 |
| 500 - 990 | $ 0.781 |
| 1000 - 1990 | $ 0.616 |
| 2000+ | $ 0.595 |
Production pack (Reel)
Live stock
2580 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Family
LCX
Mounting Type
Surface Mount
Number of Elements per Chip
1
Package Type
TSSOP
Pin Count
48
Output Type
3 State
Dimensions
12.5 x 6.1 x 0.9mm
Maximum Low Level Output Current
24mA
Maximum High Level Output Current
-24mA
Translation
Bi-Directional
Propagation Delay Test Condition
50pF
Maximum Propagation Delay Time @ Maximum CL
5.2 ns @ 50 pF
Maximum Operating Supply Voltage
2 to 3.6 V
Maximum Operating Temperature
+85 °C
Minimum Operating Supply Voltage
2 V
Minimum Operating Temperature
-40 °C
