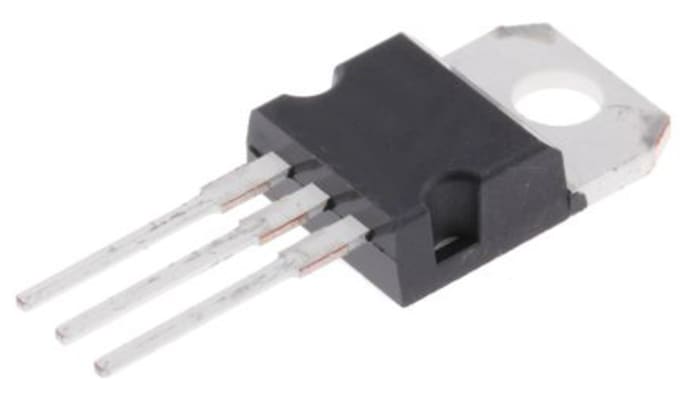

ON Semi TIP121G NPN Darlington Pair, 5 A dc 80 V dc HFE:1000, 3-Pin TO-220
RS Stock No. 186-8205
Brand ON Semiconductor
Manufacturers Part No. TIP121G
50 in stock in the UK
50 in stock in the UK
$ 0.491
Each (In a Pack of 25)
ON Semi TIP121G NPN Darlington Pair, 5 A dc 80 V dc HFE:1000, 3-Pin TO-220
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.491 |
| 100 - 475 | $ 0.345 |
| 500 - 975 | $ 0.298 |
| 1000 - 2475 | $ 0.254 |
| 2500+ | $ 0.238 |
Live stock
50 in stock in the UK
Specifications
Brand
ON Semiconductor
Transistor Type
NPN
Maximum Continuous Collector Current
5 A dc
Maximum Collector Emitter Voltage
80 V dc
Maximum Emitter Base Voltage
5 V dc
Package Type
TO-220
Mounting Type
Through Hole
Pin Count
3
Transistor Configuration
Single
Configuration
Single
Number of Elements per Chip
1
Minimum DC Current Gain
1000
Maximum Collector Base Voltage
80 V dc
Maximum Collector Emitter Saturation Voltage
4 V dc
Height
15.75mm
Width
4.83mm
Maximum Power Dissipation
65 W
Minimum Operating Temperature
-65 °C
Dimensions
10.53 x 4.83 x 15.75mm
Maximum Operating Temperature
+150 °C
Length
10.53mm
Country of Origin
CN
