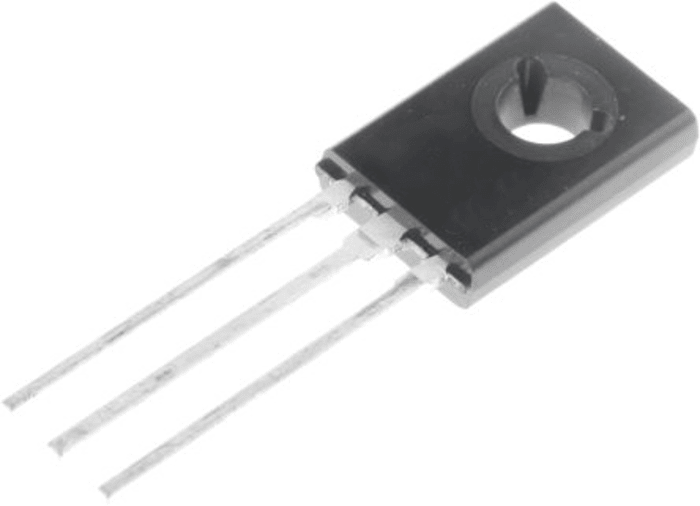

ON Semi BD677AG NPN Darlington Pair, 4 A dc 60 V dc HFE:750, 3-Pin TO-225
RS Stock No. 186-7944
Brand ON Semiconductor
Manufacturers Part No. BD677AG
75 in stock in the UK
75 in stock in the UK
$ 0.537
Each (In a Pack of 25)
ON Semi BD677AG NPN Darlington Pair, 4 A dc 60 V dc HFE:750, 3-Pin TO-225
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.537 |
| 100 - 475 | $ 0.379 |
| 500 - 975 | $ 0.310 |
| 1000 - 2475 | $ 0.251 |
| 2500+ | $ 0.219 |
Live stock
75 in stock in the UK
Specifications
Brand
ON Semiconductor
Transistor Type
NPN
Maximum Continuous Collector Current
4 A dc
Maximum Collector Emitter Voltage
60 V dc
Maximum Emitter Base Voltage
5 V dc
Package Type
TO-225
Mounting Type
Through Hole
Pin Count
3
Transistor Configuration
Single
Configuration
Single
Number of Elements per Chip
1
Minimum DC Current Gain
750
Maximum Collector Base Voltage
60 V dc
Maximum Collector Emitter Saturation Voltage
2.8 V dc
Height
11.1mm
Width
3mm
Maximum Power Dissipation
40 W
Minimum Operating Temperature
-55 °C
Dimensions
7.8 x 3 x 11.1mm
Maximum Operating Temperature
+150 °C
Length
7.8mm
Country of Origin
CN
