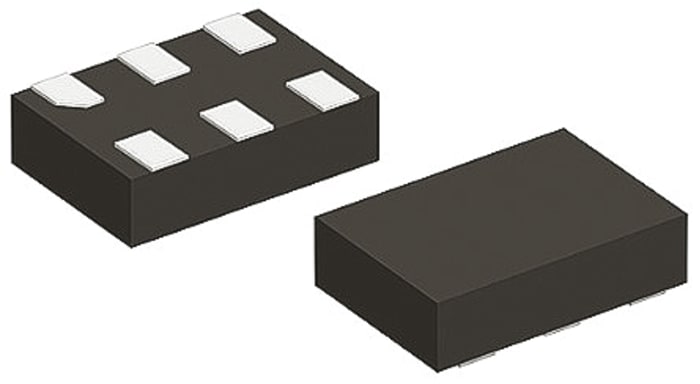

ON Semiconductor NLX2G17AMX1TCG, Dual-Channel Non-Inverting Schmitt Trigger Schmitt Trigger Schmitt Buffer, 6-Pin ULLGA

Brand

ON Semiconductor

Logic Function

Buffer

Number of Channels

2

Schmitt Trigger Input

Yes

Input Type

Schmitt Trigger

Output Type

Schmitt Trigger

Polarity

Non-Inverting

Mounting Type

Surface Mount

Package Type

ULLGA

Pin Count

6

Maximum High Level Output Current

-32mA

Maximum Low Level Output Current

32mA

Maximum Propagation Delay Time @ Maximum CL

7.5 ns @ 50 pF

Dimensions

1.45 x 1 x 0.35mm

Propagation Delay Test Condition

50pF

Length

1.45mm

Maximum Operating Supply Voltage

5.5 V

Minimum Operating Temperature

-55 °C

Minimum Operating Supply Voltage

1.65 V

Maximum Operating Temperature

+125 °C

Height

0.35mm

Width

1mm
