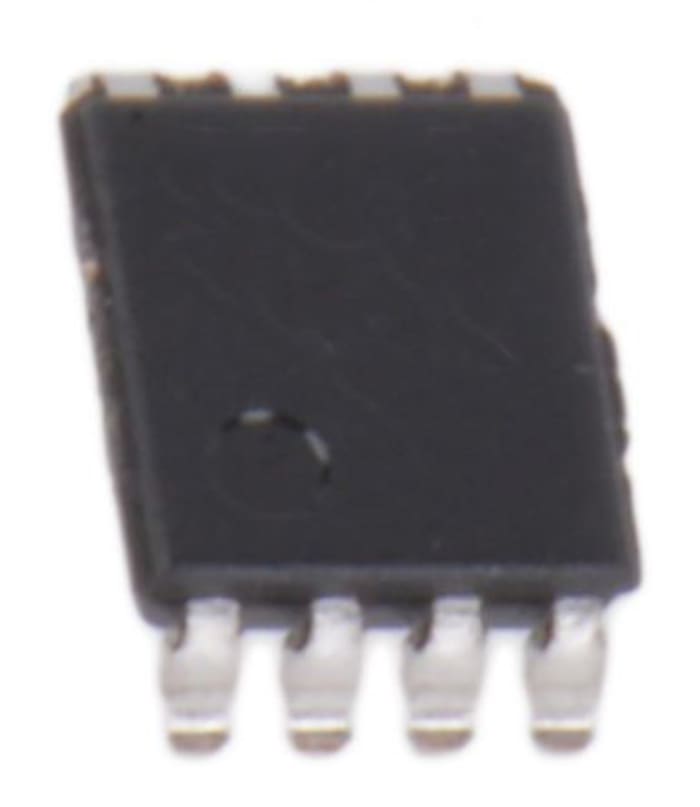

ON Semiconductor NL37WZ07USG, Triple-Channel Open Drain Buffer, 8-Pin US
RS Stock No. 186-7335
Brand ON Semiconductor
Manufacturers Part No. NL37WZ07USG
5975 in stock in the UK
5975 in stock in the UK
$ 0.137
Each (On a Reel of 3000)
ON Semiconductor NL37WZ07USG, Triple-Channel Open Drain Buffer, 8-Pin US
Buy in bulk
| quantity | Unit price |
|---|---|
| 3000 - 6000 | $ 0.137 |
| 9000+ | $ 0.115 |
Live stock
5975 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Function
Buffer
Number of Channels
3
Input Type
Open Drain
Output Type
Open Drain
Mounting Type
Surface Mount
Package Type
US
Pin Count
8
Maximum Low Level Output Current
32mA
Maximum Propagation Delay Time @ Maximum CL
7.8 ns @ 50 pF
Dimensions
2.1 x 2.4 x 0.8mm
Propagation Delay Test Condition
50pF
Automotive Standard
AEC-Q100
Length
2.1mm
Maximum Operating Supply Voltage
5.5 V
Height
0.8mm
Width
2.4mm
Minimum Operating Temperature
-55 °C
Minimum Operating Supply Voltage
1.65 V
Maximum Operating Temperature
+125 °C
