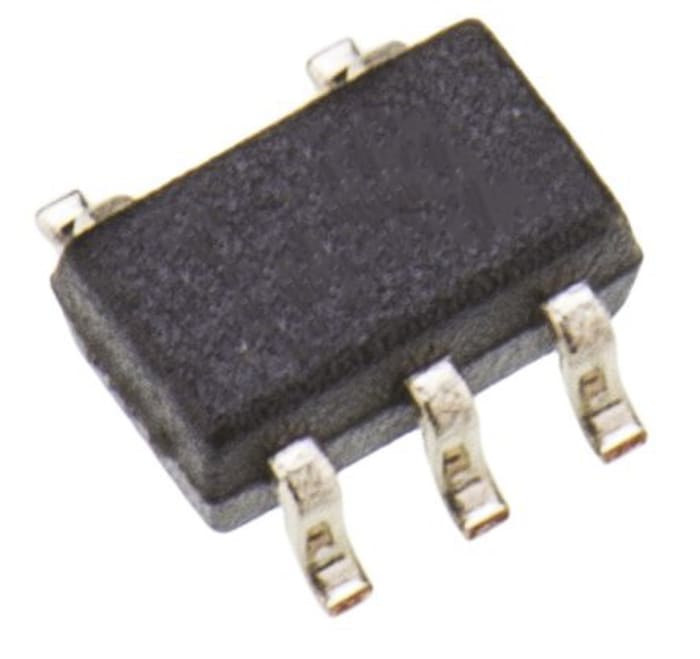

ON Semiconductor NC7S04P5X 1-Input Inverter Logic Gate, 5-Pin SC-70
RS Stock No. 186-7330
Brand ON Semiconductor
Manufacturers Part No. NC7S04P5X
3000 in stock in the UK
3000 in stock in the UK
$ 0.067
Each (On a Reel of 3000)
ON Semiconductor NC7S04P5X 1-Input Inverter Logic Gate, 5-Pin SC-70
Buy in bulk
| quantity | Unit price |
|---|---|
| 3000 - 6000 | $ 0.067 |
| 9000 - 21000 | $ 0.059 |
| 24000 - 42000 | $ 0.055 |
| 45000 - 72000 | $ 0.054 |
| 75000+ | $ 0.056 |
Live stock
3000 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Function
Inverter
Mounting Type
Surface Mount
Number Of Elements
1
Number of Inputs per Gate
1
Package Type
SC-70
Pin Count
5
Input Type
CMOS
Maximum Operating Supply Voltage
6 V
Maximum High Level Output Current
-2.6mA
Maximum Propagation Delay Time @ Maximum CL
125 ns @ 50 pF
Minimum Operating Supply Voltage
2 V
Maximum Low Level Output Current
2.6mA
Maximum Operating Temperature
+85 °C
Output Type
CMOS
Propagation Delay Test Condition
50pF
Length
2.2mm
Width
1.35mm
Minimum Operating Temperature
-40 °C
Dimensions
2.2 x 1.35 x 1mm
Height
1mm
