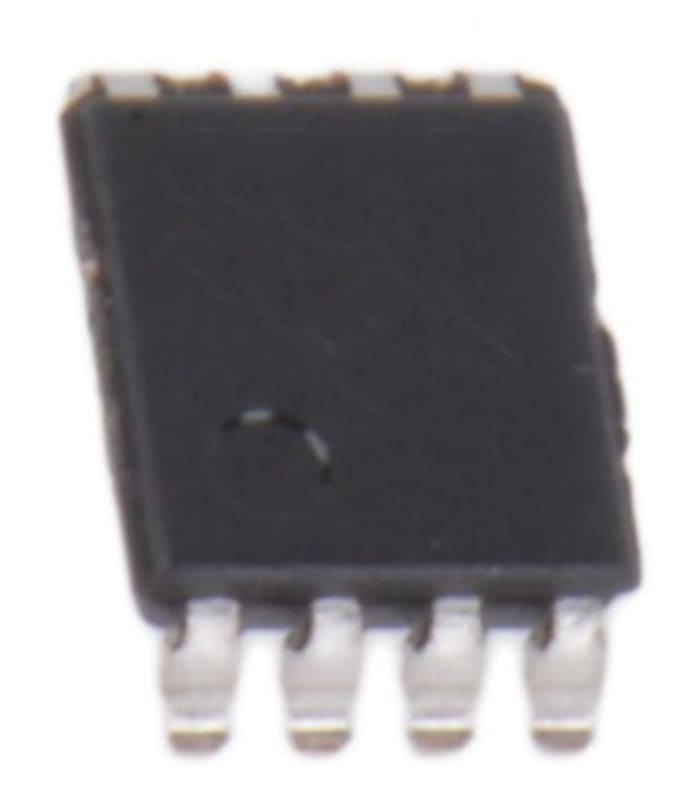

ON Semiconductor NC7NZ04K8X Inverter Logic Gate, 8-Pin US
RS Stock No. 186-7329
Brand ON Semiconductor
Manufacturers Part No. NC7NZ04K8X
3000 in stock in the UK
3000 in stock in the UK
$ 0.134
Each (On a Reel of 3000)
ON Semiconductor NC7NZ04K8X Inverter Logic Gate, 8-Pin US
Buy in bulk
| quantity | Unit price |
|---|---|
| 3000 - 6000 | $ 0.134 |
| 9000 - 21000 | $ 0.124 |
| 24000 - 42000 | $ 0.118 |
| 45000+ | $ 0.117 |
Live stock
3000 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Function
Inverter
Mounting Type
Surface Mount
Package Type
US
Pin Count
8
Input Type
CMOS
Maximum Operating Supply Voltage
5.5 V
Maximum High Level Output Current
-32mA
Maximum Propagation Delay Time @ Maximum CL
5 ns @ 50 pF
Minimum Operating Supply Voltage
1.65 V
Maximum Low Level Output Current
32mA
Height
0.8mm
Width
2.4mm
Maximum Operating Temperature
+85 °C
Propagation Delay Test Condition
50pF
Minimum Operating Temperature
-40 °C
Dimensions
2.1 x 2.4 x 0.8mm
Length
2.1mm
