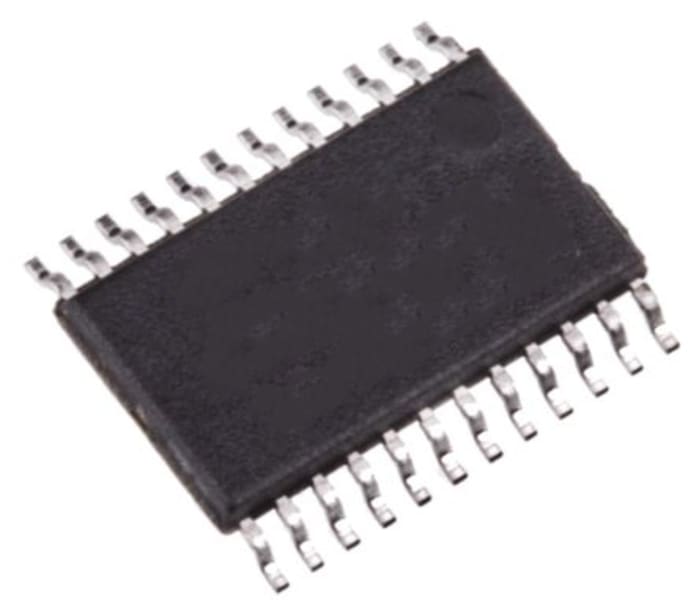

ON Semiconductor MC74LVX4245DTG, Voltage Level Shifter Translating Transceiver 1, 24-Pin TSSOP
RS Stock No. 186-7302
Brand ON Semiconductor
Manufacturers Part No. MC74LVX4245DTG
Temporarily out of stock
Back order for despatch on 06/29/2021
Temporarily out of stock
$ 1.410
Each (In a Tube of 62)
ON Semiconductor MC74LVX4245DTG, Voltage Level Shifter Translating Transceiver 1, 24-Pin TSSOP
Buy in bulk
| quantity | Unit price |
|---|---|
| 62 - 62 | $ 1.410 |
| 124 - 496 | $ 1.085 |
| 558 - 992 | $ 0.961 |
| 1054 - 2480 | $ 0.759 |
| 2542+ | $ 0.708 |
Live stock
Temporarily out of stock
Back order for despatch on 06/29/2021
Specifications
Brand
ON Semiconductor
Logic Family
LVX
Mounting Type
Surface Mount
Number of Elements per Chip
1
Package Type
TSSOP
Pin Count
24
Output Type
TTL
Logic Function
Translating Transceiver
Dimensions
7.9 x 4.5 x 1.05mm
Maximum Low Level Output Current
8mA
Maximum High Level Output Current
-8mA
Propagation Delay Test Condition
50pF
Maximum Propagation Delay Time @ Maximum CL
10 ns @ 50 pF
Maximum Operating Supply Voltage
4.5 to 5.5 V
Maximum Operating Temperature
+85 °C
Minimum Operating Supply Voltage
4.5 V
Minimum Operating Temperature
-40 °C
Automotive Standard
AEC-Q100
