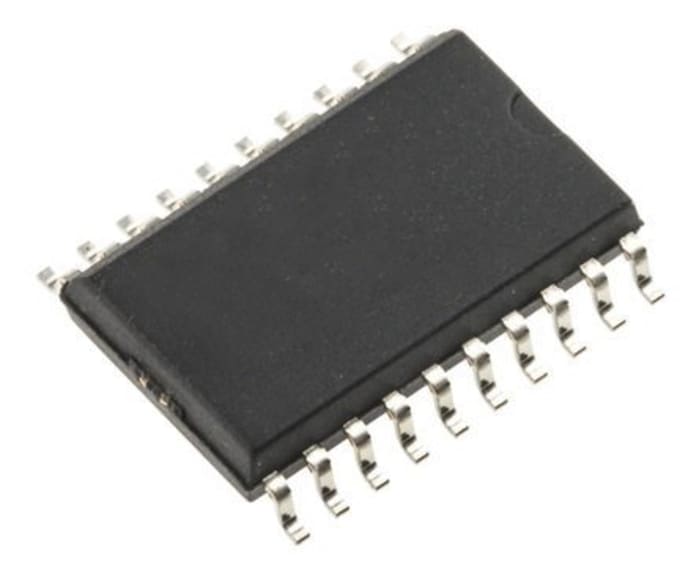

ON Semiconductor MC74HCT245ADWG, Voltage Level Shifter Bus Transceiver 1, 20-Pin SOIC
RS Stock No. 186-7294
Brand ON Semiconductor
Manufacturers Part No. MC74HCT245ADWG
51 in stock in the UK
51 in stock in the UK
$ 0.538
Each (In a Tube of 38)
ON Semiconductor MC74HCT245ADWG, Voltage Level Shifter Bus Transceiver 1, 20-Pin SOIC
Buy in bulk
| quantity | Unit price |
|---|---|
| 38 - 76 | $ 0.538 |
| 114 - 494 | $ 0.405 |
| 532 - 988 | $ 0.345 |
| 1026 - 2470 | $ 0.277 |
| 2508+ | $ 0.275 |
Live stock
51 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Family
HCT
Mounting Type
Surface Mount
Number of Elements per Chip
1
Package Type
SOIC
Pin Count
20
Output Type
3 State
Logic Function
Bus Transceiver
Dimensions
12.95 x 7.6 x 2.4mm
Maximum Low Level Output Current
6mA
Maximum High Level Output Current
6mA
Propagation Delay Test Condition
50pF
Maximum Propagation Delay Time @ Maximum CL
33 ns @ 50 pF
Maximum Operating Supply Voltage
4.5 to 5.5 V
Maximum Operating Temperature
+125 °C
Minimum Operating Supply Voltage
4.5 V
Minimum Operating Temperature
-55 °C
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
