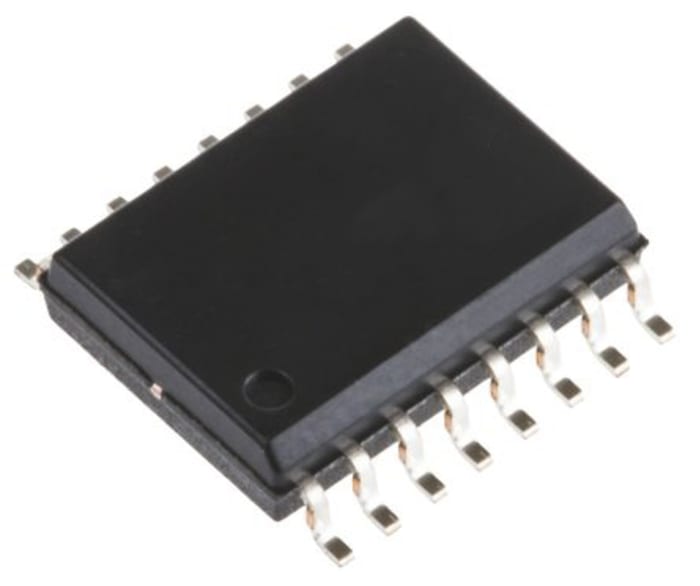

ON Semiconductor MC74ACT153DG 4-Input Multiplexer Logic Gate, 16-Pin SOIC
RS Stock No. 186-7285
Brand ON Semiconductor
Manufacturers Part No. MC74ACT153DG
192 in stock in the UK
192 in stock in the UK
$ 0.478
Each (In a Tube of 48)
ON Semiconductor MC74ACT153DG 4-Input Multiplexer Logic Gate, 16-Pin SOIC
Buy in bulk
| quantity | Unit price |
|---|---|
| 48 - 96 | $ 0.478 |
| 144 - 480 | $ 0.381 |
| 528 - 960 | $ 0.298 |
| 1008 - 2496 | $ 0.231 |
| 2544+ | $ 0.197 |
Live stock
192 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Function
Multiplexer
Mounting Type
Surface Mount
Number of Inputs per Gate
4
Package Type
SOIC
Pin Count
16
Logic Family
ACT
Input Type
TTL
Maximum Operating Supply Voltage
5.5 V
Maximum High Level Output Current
-24mA
Maximum Propagation Delay Time @ Maximum CL
17.5 ns @ 50 pF
Minimum Operating Supply Voltage
4.5 V
Maximum Low Level Output Current
24mA
Maximum Operating Temperature
+85 °C
Height
1.5mm
Width
4mm
Minimum Operating Temperature
-40 °C
Dimensions
10 x 4 x 1.5mm
Propagation Delay Test Condition
50pF
Length
10mm
