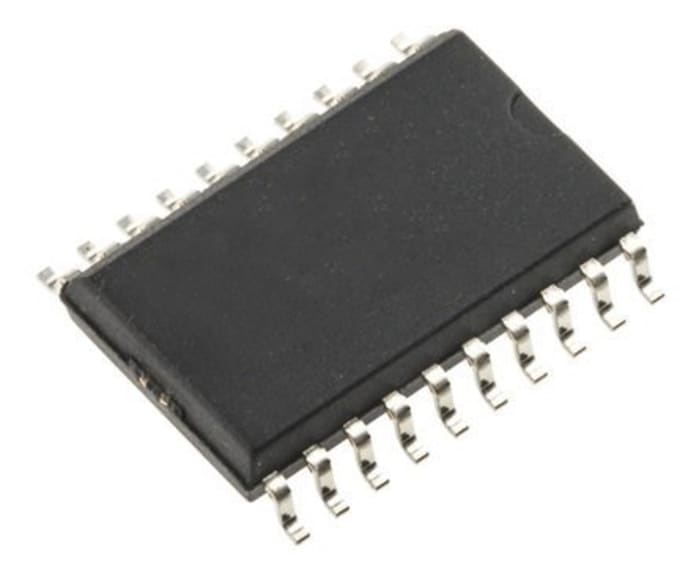

ON Semiconductor 74LCX541WM, Voltage Level Shifter Buffer 1 CMOS, 20-Pin SOIC
RS Stock No. 186-7246
Brand ON Semiconductor
Manufacturers Part No. 74LCX541WM
1548 in stock in the UK
1548 in stock in the UK
$ 0.773
Each (In a Tube of 36)
ON Semiconductor 74LCX541WM, Voltage Level Shifter Buffer 1 CMOS, 20-Pin SOIC
Buy in bulk
| quantity | Unit price |
|---|---|
| 36 - 72 | $ 0.773 |
| 108 - 468 | $ 0.498 |
| 504 - 972 | $ 0.473 |
| 1008 - 2484 | $ 0.361 |
| 2520+ | $ 0.360 |
Live stock
1548 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Family
LCX
Mounting Type
Surface Mount
Number of Elements per Chip
1
Package Type
SOIC
Pin Count
20
Output Type
3 State
Logic Function
Buffer
Dimensions
13 x 7.6 x 2.34mm
Maximum Low Level Output Current
24mA
Maximum High Level Output Current
-24mA
Translation
CMOS
Propagation Delay Test Condition
50pF
Maximum Operating Supply Voltage
2 to 3.6 V
Maximum Propagation Delay Time @ Maximum CL
7.5 ns @ 50 pF
Maximum Operating Temperature
+85 °C
Minimum Operating Supply Voltage
2 V
Minimum Operating Temperature
-40 °C
Automotive Standard
AEC-Q100
