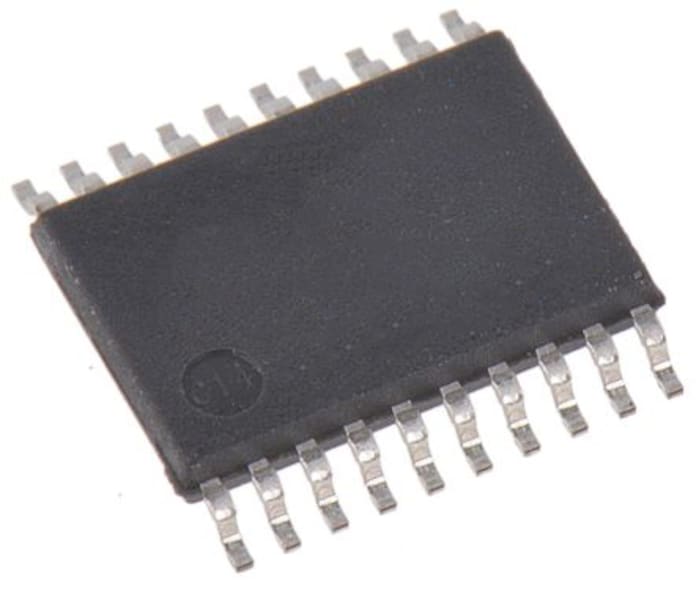

ON Semiconductor 74ACT245MTC, Voltage Level Shifter 1 Bi-Directional, 20-Pin TSSOP
RS Stock No. 186-7235
Brand ON Semiconductor
Manufacturers Part No. 74ACT245MTC
300 in stock in the UK
300 in stock in the UK
$ 0.481
Each (In a Tube of 75)
ON Semiconductor 74ACT245MTC, Voltage Level Shifter 1 Bi-Directional, 20-Pin TSSOP
Buy in bulk
| quantity | Unit price |
|---|---|
| 75 - 300 | $ 0.481 |
| 375 - 675 | $ 0.373 |
| 750 - 1425 | $ 0.363 |
| 1500 - 2175 | $ 0.353 |
| 2250+ | $ 0.345 |
Live stock
300 in stock in the UK
Specifications
Brand
ON Semiconductor
Logic Family
ACT
Mounting Type
Surface Mount
Number of Elements per Chip
1
Package Type
TSSOP
Pin Count
20
Output Type
3 State
Dimensions
6.6 x 4.5 x 1.05mm
Maximum Low Level Output Current
24mA
Maximum High Level Output Current
-24mA
Translation
Bi-Directional
Propagation Delay Test Condition
50pF
Maximum Propagation Delay Time @ Maximum CL
9 ns @ 50 pF
Maximum Operating Supply Voltage
2 to 6 V
Maximum Operating Temperature
+85 °C
Minimum Operating Supply Voltage
2 V
Minimum Operating Temperature
-40 °C
