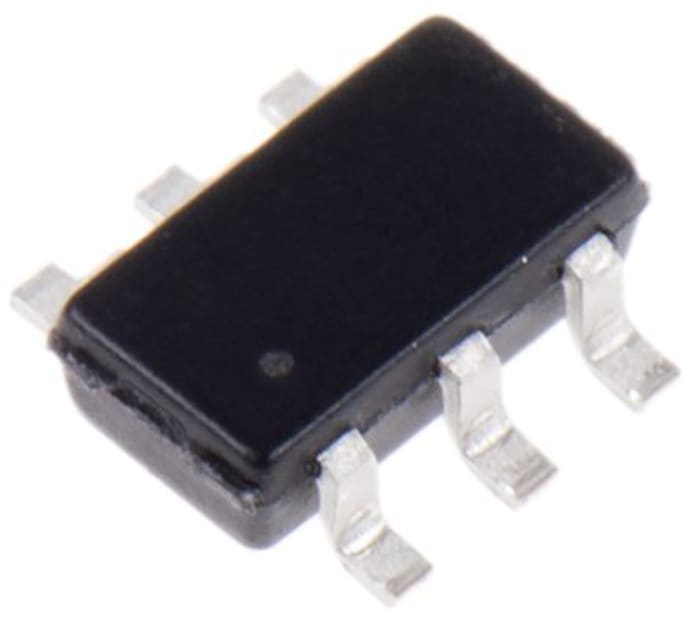

P-Channel MOSFET, 2.2 A, 20 V, 6-Pin TSOP ON Semiconductor NTGS3443T1G
RS Stock No. 186-7201
Brand ON Semiconductor
Manufacturers Part No. NTGS3443T1G
6000 in stock in the UK
6000 in stock in the UK
$ 0.115
Each (On a Reel of 3000)
P-Channel MOSFET, 2.2 A, 20 V, 6-Pin TSOP ON Semiconductor NTGS3443T1G
Buy in bulk
| quantity | Unit price |
|---|---|
| 3000 - 6000 | $ 0.115 |
| 9000 - 15000 | $ 0.114 |
| 18000 - 21000 | $ 0.103 |
| 24000 - 42000 | $ 0.101 |
| 45000+ | $ 0.113 |
Live stock
6000 in stock in the UK
Specifications
Brand
ON Semiconductor
Channel Type
P
Maximum Continuous Drain Current
2.2 A
Maximum Drain Source Voltage
20 V
Package Type
TSOP
Mounting Type
Surface Mount
Pin Count
6
Maximum Drain Source Resistance
100 mΩ
Channel Mode
Enhancement
Maximum Power Dissipation
2 W
Transistor Configuration
Single
Maximum Gate Source Voltage
+12 V
Number of Elements per Chip
1
Maximum Operating Temperature
+150 °C
Automotive Standard
AEC-Q101
Length
3.1mm
Typical Gate Charge @ Vgs
7.5 nC @ 4.5 V
Minimum Operating Temperature
-55 °C
Height
1mm
Width
3mm
