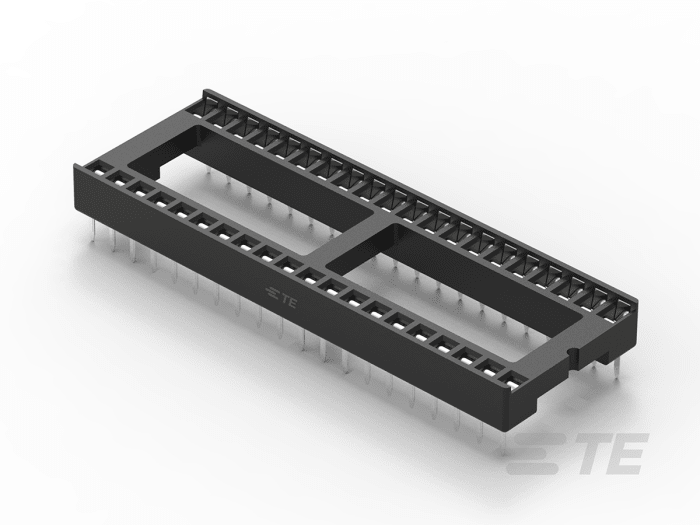

TE Connectivity 2.54mm Pitch Straight 40 Way, Through Hole Ladder IC Dip Socket, 1A
RS Stock No. 186-4939
Brand TE Connectivity
Manufacturers Part No. 1-2199299-5
140 in stock in the UK
140 in stock in the UK
$ 0.585
Each (In a Pack of 10)
TE Connectivity 2.54mm Pitch Straight 40 Way, Through Hole Ladder IC Dip Socket, 1A
Buy in bulk
| quantity | Unit price |
|---|---|
| 10 - 40 | $ 0.585 |
| 50 - 190 | $ 0.569 |
| 200 - 390 | $ 0.555 |
| 400 - 590 | $ 0.540 |
| 600+ | $ 0.525 |
Live stock
140 in stock in the UK
Specifications
Brand
TE Connectivity
Number Of Contacts
40
Mounting Type
Through Hole
Pitch
2.54mm
Row Width
15.24mm
Frame Type
Ladder
Termination Method
Solder
Contact Plating
Tin
Current Rating
1A
Orientation
Straight
Length
50.8mm
Width
17.7mm
Depth
5.1mm
Dimensions
50.8 x 17.7 x 5.1mm
Minimum Operating Temperature
-40°C
Voltage Rating
250 V ac/dc
Maximum Operating Temperature
+105°C
Housing Material
Glass Filled PBT, Thermoplastic
Contact Material
Phosphor Bronze
Country of Origin
CN
Technical Document
RoHS Certificate of Compliance
Statement of Conformity
