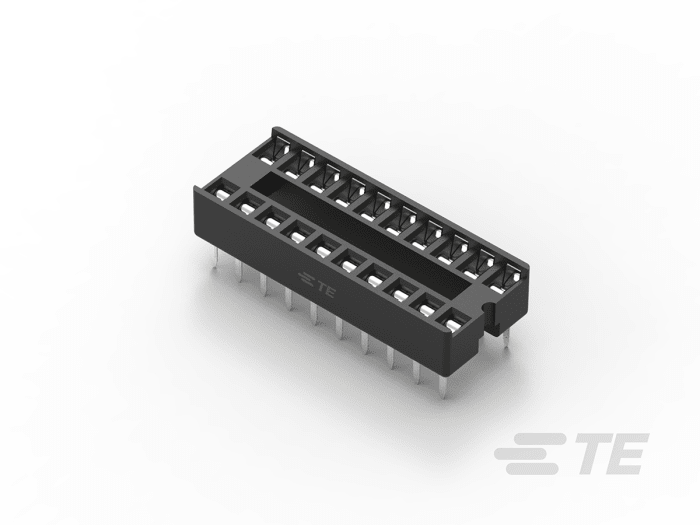

TE Connectivity 2.54mm Pitch Straight 20 Way, Through Hole Ladder IC Dip Socket, 1A
RS Stock No. 186-4808
Brand TE Connectivity
Manufacturers Part No. 1-2199298-6
Temporarily out of stock
Back order for despatch on 07/06/2021
Temporarily out of stock
$ 0.227
Each (In a Tube of 2400)
TE Connectivity 2.54mm Pitch Straight 20 Way, Through Hole Ladder IC Dip Socket, 1A
Live stock
Temporarily out of stock
Back order for despatch on 07/06/2021
Specifications
Brand
TE Connectivity
Number Of Contacts
20
Mounting Type
Through Hole
Pitch
2.54mm
Row Width
7.62mm
Frame Type
Ladder
Termination Method
Solder
Contact Plating
Tin
Current Rating
1A
Orientation
Straight
Length
25.4mm
Width
10mm
Depth
5.1mm
Dimensions
25.4 x 10 x 5.1mm
Minimum Operating Temperature
-40°C
Voltage Rating
250 V ac/dc
Maximum Operating Temperature
+105°C
Housing Material
Glass Filled PBT, Thermoplastic
Contact Material
Phosphor Bronze
