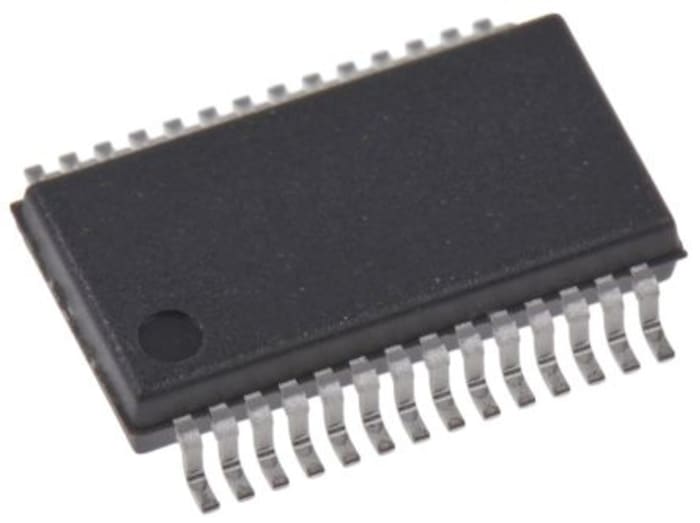

ROHM BD64220EFV-E2, Brushed Motor Driver IC 28-Pin, HTSSOP-B
RS Stock No. 186-4256
Brand ROHM
Manufacturers Part No. BD64220EFV-E2
Permanently discontinued
Permanently discontinued
P.O.A
ROHM BD64220EFV-E2, Brushed Motor Driver IC 28-Pin, HTSSOP-B
Live stock
Permanently discontinued
Specifications
Brand
ROHM
Motor Type
Brushed DC
Output Configuration
Single Ended
Configuration
H Bridge
Maximum Output Current
2A
Maximum Supply Voltage
46.2 V
Mounting Type
Surface Mount
Package Type
HTSSOP-B
Pin Count
28
Maximum Operating Supply Voltage
46.2 V
Minimum Operating Supply Voltage
8 V
Typical Switching Frequency
100kHz
Series
BD64220EFV
Product Width
4.4mm
Maximum Operating Temperature
+85 °C
Length
9.7mm
Product Length
9.7mm
Height
0.85mm
Width
4.4mm
Product Height
0.85mm
Minimum Operating Temperature
-25 °C
Dimensions
9.7 x 4.4 x 0.85mm
