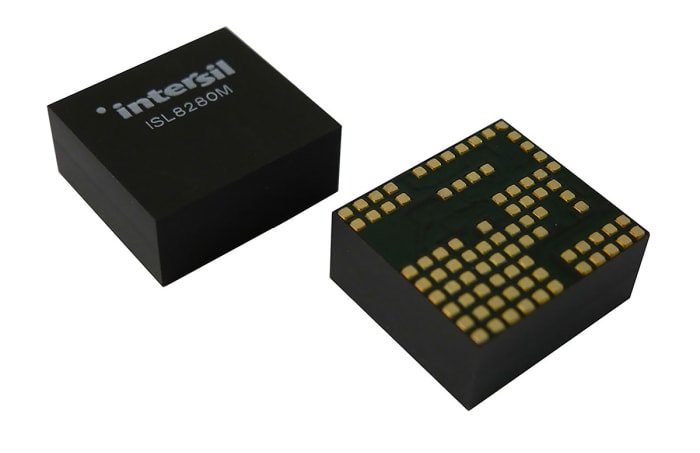

Renesas Electronics ISL8280MFRZ, 1-Channel, Step Down DC-DC Converter, Adjustable, 0A 83-Pin, HDA
RS Stock No. 186-2030
Brand Renesas Electronics
Manufacturers Part No. ISL8280MFRZ
Temporarily out of stock
Back order for despatch on 10/12/2021
Temporarily out of stock
$ 15.287
Each (In a Tube of 160)
Renesas Electronics ISL8280MFRZ, 1-Channel, Step Down DC-DC Converter, Adjustable, 0A 83-Pin, HDA
Live stock
Temporarily out of stock
Back order for despatch on 10/12/2021
Specifications
Brand
Renesas Electronics
Minimum Output Voltage
0.5 V
Maximum Output Voltage
5 V
Minimum Input Voltage
4.5 V
Maximum Input Voltage
16.5 V
Minimum Output Current
0A
Maximum Output Current
10A
Converter Type
Step Down
Number of Outputs
1
Output Type
Adjustable
Mounting Type
Surface Mount
Package Type
HDA
Pin Count
83
Maximum Operating Temperature
+125 °C
Minimum Operating Temperature
-40 °C
Height
5.27mm
Width
11mm
Efficiency
95.2%
Dimensions
12 x 11 x 5.27mm
Line Regulation
±1.2 %
Maximum Switching Frequency
1 MHz
Load Regulation
±1.2 %
Switching Regulator
Yes
Length
12mm
