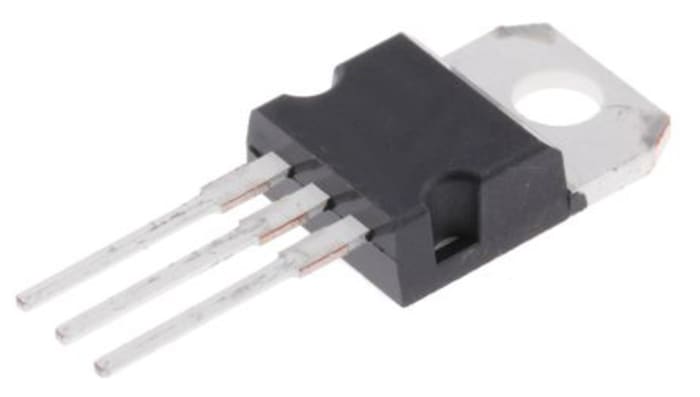

N-Channel MOSFET, 30 A, 650 V, 3-Pin TO-220 ON Semiconductor NTPF110N65S3HF
RS Stock No. 186-1441
Brand ON Semiconductor
Manufacturers Part No. NTPF110N65S3HF
988 in stock in the UK
988 in stock in the UK
$ 3.800
Each (In a Pack of 2)
N-Channel MOSFET, 30 A, 650 V, 3-Pin TO-220 ON Semiconductor NTPF110N65S3HF
Buy in bulk
| quantity | Unit price |
|---|---|
| 2 - 8 | $ 3.800 |
| 10 - 98 | $ 3.222 |
| 100 - 248 | $ 2.578 |
| 250 - 498 | $ 2.444 |
| 500+ | $ 2.296 |
Production pack (Tube)
Live stock
988 in stock in the UK
Specifications
Brand
ON Semiconductor
Channel Type
N
Maximum Continuous Drain Current
30 A
Maximum Drain Source Voltage
650 V
Package Type
TO-220
Mounting Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance
110 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
5V
Minimum Gate Threshold Voltage
3V
Maximum Power Dissipation
240 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±30 V
Number of Elements per Chip
1
Height
16.12mm
Width
4.9mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.3V
Maximum Operating Temperature
+150 °C
Length
10.63mm
Typical Gate Charge @ Vgs
62 nC @ 10 V
