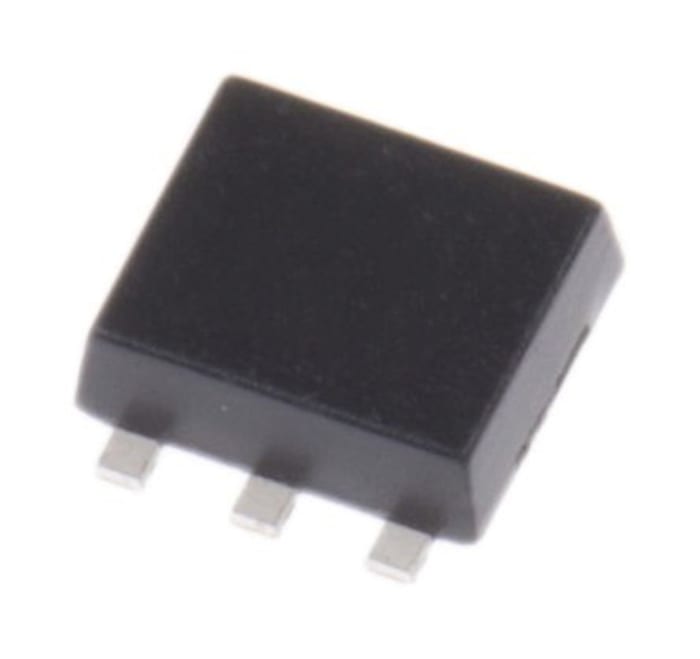

NCS20071XV53T2G ON Semiconductor, Op Amp, 3MHz 1 kHz, 2.7 → 36 V, 5-Pin SOT-553

Brand

ON Semiconductor

Mounting Type

Surface Mount

Package Type

SOT-553

Power Supply Type

Dual, Single

Number of Channels per Chip

1

Pin Count

5

Typical Single Supply Voltage

2.7 → 36 V

Typical Gain Bandwidth Product

3MHz

Output Type

Rail to Rail

Typical Dual Supply Voltage

±1.35 to ±18V

Typical Slew Rate

2.8V/µs

Maximum Operating Frequency

1 kHz

Minimum Operating Temperature

-40 °C

Maximum Operating Temperature

+125 °C

Automotive Standard

AEC-Q100

Maximum Input Voltage

36 V

Width

1.25mm

Offset Voltage

4.5mV

Typical Voltage Gain

118 dB

Minimum Input Voltage

2.7 V

Input Voltage Range

2.7 → 36 V

Typical Input Voltage Noise Density

30nV/√Hz

Dimensions

1.65 x 1.25 x 0.6mm

Length

1.65mm

Output Current

100 mA

Input Offset Current

500pA

Height

0.6mm
