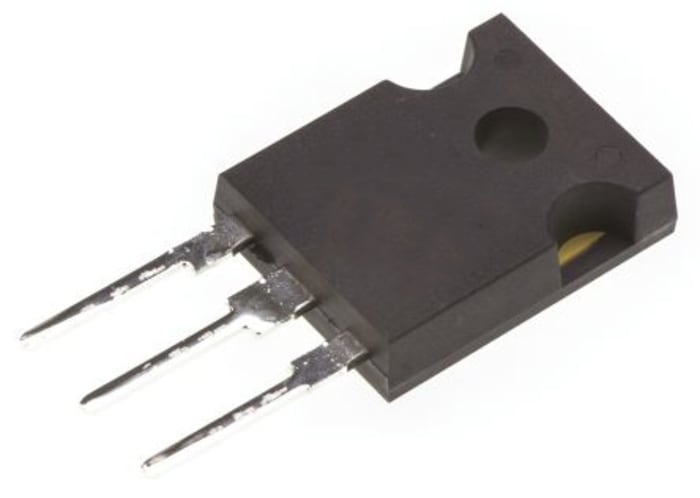

N-Channel MOSFET, 30 A, 650 V, 3-Pin TO-247 ON Semiconductor NVHL110N65S3F
RS Stock No. 186-1315
Brand ON Semiconductor
Manufacturers Part No. NVHL110N65S3F
448 in stock in the UK
448 in stock in the UK
$ 5.438
Each (In a Pack of 2)
N-Channel MOSFET, 30 A, 650 V, 3-Pin TO-247 ON Semiconductor NVHL110N65S3F
Buy in bulk
| quantity | Unit price |
|---|---|
| 2 - 8 | $ 5.438 |
| 10 - 98 | $ 4.619 |
| 100 - 248 | $ 3.692 |
| 250 - 498 | $ 3.478 |
| 500+ | $ 3.276 |
Production pack (Tube)
Live stock
448 in stock in the UK
Specifications
Brand
ON Semiconductor
Channel Type
N
Maximum Continuous Drain Current
30 A
Maximum Drain Source Voltage
650 V
Package Type
TO-247
Mounting Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance
110 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
5V
Minimum Gate Threshold Voltage
3V
Maximum Power Dissipation
240 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±30 V
Number of Elements per Chip
1
Height
20.82mm
Width
4.82mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.3V
Maximum Operating Temperature
+150 °C
Typical Gate Charge @ Vgs
58 nC @ 10 V
Automotive Standard
AEC-Q101
Length
15.87mm
