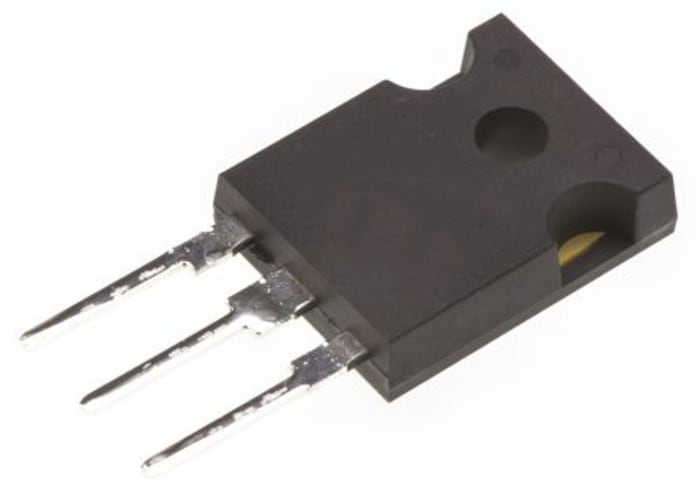

N-Channel MOSFET, 30 A, 650 V, 3-Pin TO-247 ON Semiconductor NVHL110N65S3F
Temporarily out of stock
Back order for despatch on 12/07/2021
$ 3.478
Each (In a Tube of 450)
Buy in bulk
| quantity | Unit price |
|---|---|
| 450 - 450 | $ 3.478 |
| 900 - 900 | $ 3.276 |
| 1350 - 2250 | $ 2.860 |
| 2700 - 4950 | $ 2.766 |
| 5400+ | $ 2.672 |
Live stock
Temporarily out of stock
Back order for despatch on 12/07/2021
Specifications
Brand
ON Semiconductor
Channel Type
N
Maximum Continuous Drain Current
30 A
Maximum Drain Source Voltage
650 V
Package Type
TO-247
Mounting Type
Through Hole
Pin Count
3
Maximum Drain Source Resistance
110 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
5V
Minimum Gate Threshold Voltage
3V
Maximum Power Dissipation
240 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±30 V
Number of Elements per Chip
1
Height
20.82mm
Width
4.82mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.3V
Maximum Operating Temperature
+150 °C
Automotive Standard
AEC-Q101
Length
15.87mm
Typical Gate Charge @ Vgs
58 nC @ 10 V
