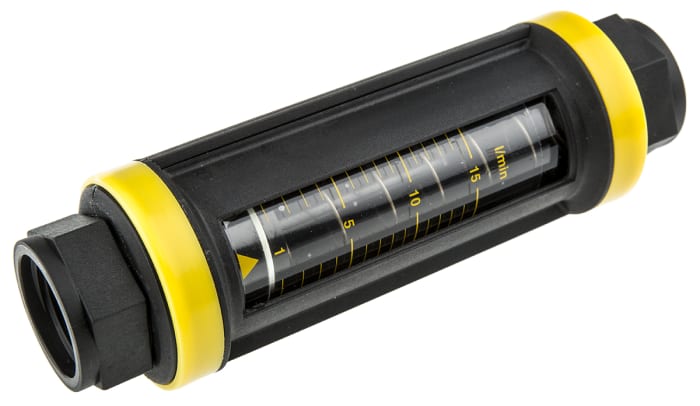

Parker UCC Variable Area Flow Meter, 1 L/min → 15 L/min, Easiflow Series
Temporarily out of stock
Back order for despatch on 04/20/2021
$ 375.38
Each
Live stock
Temporarily out of stock
Back order for despatch on 04/20/2021
Product details
Flow Switch
Calibrated flow indicator with switched output specifically designed for use with water. Suitable for installation in any plane. Utilises the technique of differential pressure across a piston against a calibrated spring, with the flow rate read off a scale marked on the viewing window. The switch incorporates an AC magnetically operated reed switch output (minimum current of 50mA) which can be adjusted across the flow range to enable remote indication of max/min, and flow rate exceeded
Combination Visual Flow Indicators/Switches
Specifications
Brand
Parker UCC
Media Monitored
Liquid
Device Type
Variable Area
Minimum Flow Rate
1 L/min
Maximum Flow Rate
15 L/min
Supply Voltage
240 V ac
Pipe Diameter Range
1 in
Connection Type
1 BSP Female
Maximum Pressure
10bar
Material
PET
Minimum Operating Temperature
+5°C
Maximum Operating Temperature
+60°C
Series
Easiflow
