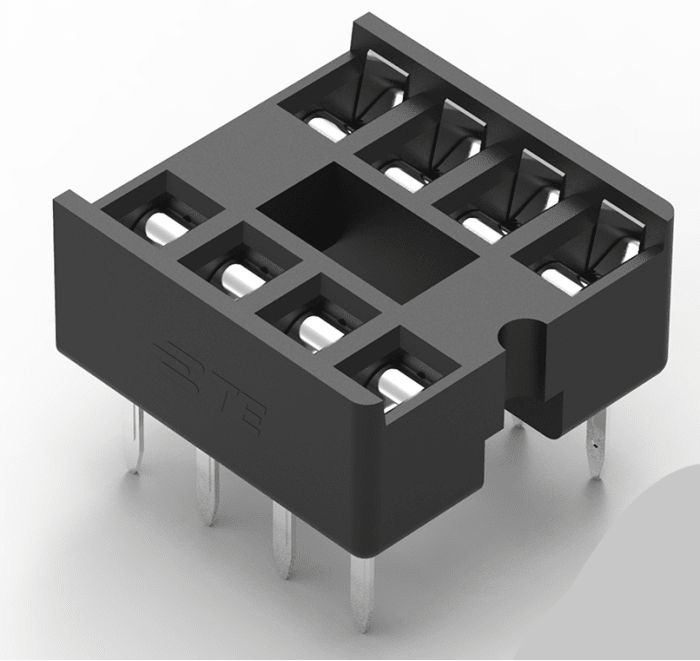

TE Connectivity 2.54mm Pitch Vertical 8 Way, Through Hole Standard Pin Ladder IC Dip Socket, 1A
RS Stock No. 185-9851
Brand TE Connectivity
Manufacturers Part No. 1-2199298-2
650 in stock in the UK
650 in stock in the UK
$ 0.180
Each (In a Pack of 25)
TE Connectivity 2.54mm Pitch Vertical 8 Way, Through Hole Standard Pin Ladder IC Dip Socket, 1A
Buy in bulk
| quantity | Unit price |
|---|---|
| 25 - 75 | $ 0.180 |
| 100 - 975 | $ 0.148 |
| 1000 - 1975 | $ 0.113 |
| 2000 - 2975 | $ 0.091 |
| 3000+ | $ 0.083 |
Production pack (Tube)
Live stock
650 in stock in the UK
Specifications
Brand
TE Connectivity
Number Of Contacts
8
Mounting Type
Through Hole
Pin Type
Standard
Pitch
2.54mm
Row Width
7.62mm
Frame Type
Ladder
Termination Method
Solder
Contact Plating
Tin
Current Rating
1A
Orientation
Vertical
Length
7.62mm
Width
10mm
Depth
5.1mm
Dimensions
7.62 x 10 x 5.1mm
Minimum Operating Temperature
-40°C
Voltage Rating
250 V ac/dc
Maximum Operating Temperature
+105°C
Housing Material
PBT
Contact Material
Phosphor Bronze
