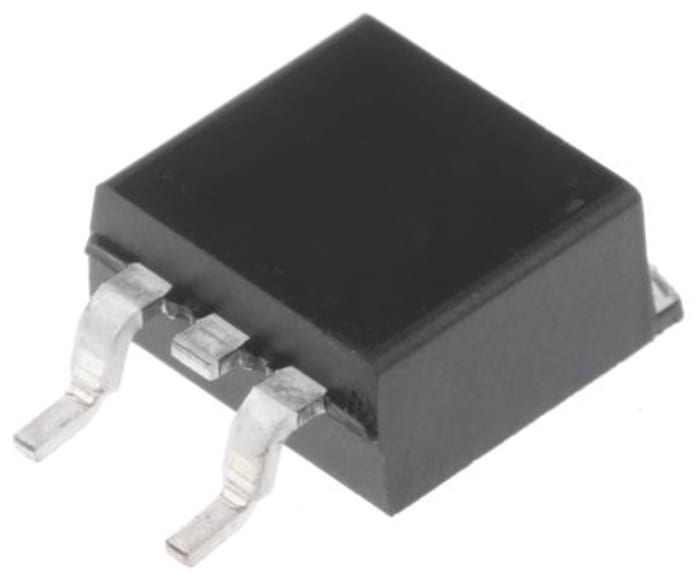

N-Channel MOSFET, 110 A, 60 V, 3-Pin D2PAK ON Semiconductor NTBS2D7N06M7
RS Stock No. 185-9328
Brand ON Semiconductor
Manufacturers Part No. NTBS2D7N06M7
798 in stock in the UK
798 in stock in the UK
$ 3.961
Each (In a Pack of 3)
N-Channel MOSFET, 110 A, 60 V, 3-Pin D2PAK ON Semiconductor NTBS2D7N06M7
Buy in bulk
| quantity | Unit price |
|---|---|
| 3 - 9 | $ 3.961 |
| 12 - 99 | $ 3.370 |
| 102 - 249 | $ 2.699 |
| 252 - 498 | $ 2.538 |
| 501+ | $ 2.390 |
Production pack (Reel)
Live stock
798 in stock in the UK
Specifications
Brand
ON Semiconductor
Channel Type
N
Maximum Continuous Drain Current
110 A
Maximum Drain Source Voltage
60 V
Package Type
D2PAK
Mounting Type
Surface Mount
Pin Count
3
Maximum Drain Source Resistance
5 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
4V
Minimum Gate Threshold Voltage
2V
Maximum Power Dissipation
176 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±20 V
Number of Elements per Chip
1
Height
4.58mm
Width
9.65mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.25V
Maximum Operating Temperature
+175 °C
Length
10.67mm
Typical Gate Charge @ Vgs
80 nC @ 10 V
Country of Origin
PH
