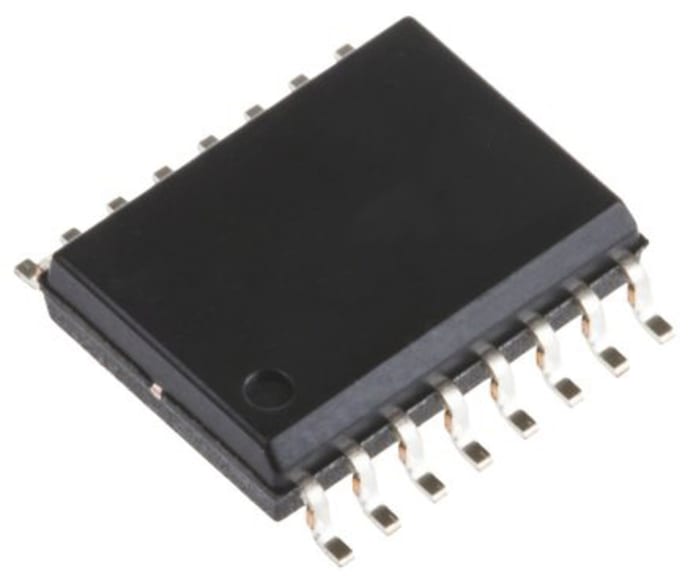

ON Semiconductor NCV1063AD100R2G, PWM Controller, 9 V, 100 kHz 16-Pin, SOIC
RS Stock No. 185-9316
Brand ON Semiconductor
Manufacturers Part No. NCV1063AD100R2G
Temporarily out of stock
Temporarily out of stock
$ 1.584
Each (In a Pack of 6)
ON Semiconductor NCV1063AD100R2G, PWM Controller, 9 V, 100 kHz 16-Pin, SOIC
Buy in bulk
| quantity | Unit price |
|---|---|
| 6 - 6 | $ 1.584 |
| 12 - 96 | $ 1.356 |
| 102 - 498 | $ 0.920 |
| 504 - 996 | $ 0.870 |
| 1002+ | $ 0.678 |
Production pack (Reel)
Live stock
Temporarily out of stock
Specifications
Brand
ON Semiconductor
Maximum Switching Frequency
100 kHz
Output Voltage
670 V
Output Current
780 mA
Mounting Type
Surface Mount
Fall Time
10ns
Rise Time
20ns
Package Type
SOIC
Pin Count
16
Maximum Duty Cycle
72%
Dimensions
10 x 4 x 1.5mm
Length
10mm
PWM Controller Type
Current Mode
Width
4mm
Height
1.5mm
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+150 °C
Automotive Standard
AEC-Q100
Maximum Operating Supply Voltage
9 V
Country of Origin
PH
