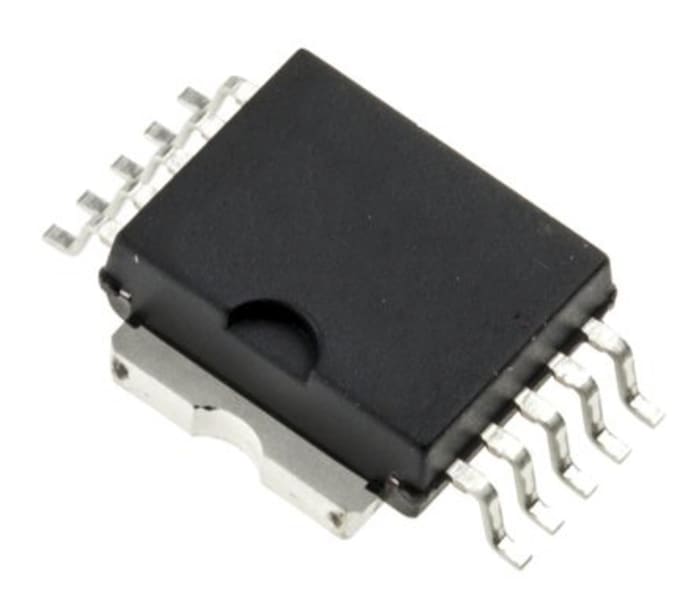

ON Semiconductor NCV1060BD100R2G, PWM Controller, 9 V, 65 kHz 10-Pin, SOIC
RS Stock No. 185-9298
Brand ON Semiconductor
Manufacturers Part No. NCV1060BD100R2G
2478 in stock in the UK
2478 in stock in the UK
$ 1.233
Each (In a Pack of 6)
ON Semiconductor NCV1060BD100R2G, PWM Controller, 9 V, 65 kHz 10-Pin, SOIC
Buy in bulk
| quantity | Unit price |
|---|---|
| 6 - 6 | $ 1.233 |
| 12 - 96 | $ 1.054 |
| 102 - 498 | $ 0.779 |
| 504 - 996 | $ 0.702 |
| 1002+ | $ 0.553 |
Production pack (Reel)
Live stock
2478 in stock in the UK
Specifications
Brand
ON Semiconductor
Maximum Switching Frequency
65 kHz
Output Voltage
670 V
Output Current
300 mA
Mounting Type
Surface Mount
Fall Time
10ns
Rise Time
20ns
Package Type
SOIC
Pin Count
10
Maximum Duty Cycle
72%
Dimensions
5 x 4 x 1.75mm
Length
5mm
PWM Controller Type
Current Mode
Width
4mm
Height
1.75mm
Minimum Operating Temperature
-40 °C
Maximum Operating Temperature
+150 °C
Automotive Standard
AEC-Q100
Maximum Operating Supply Voltage
9 V
Country of Origin
TH
