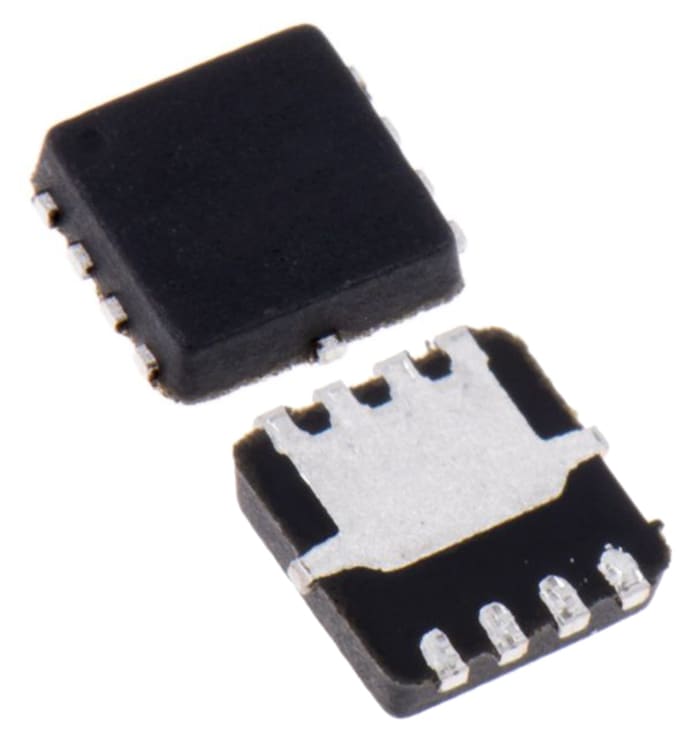

N-Channel MOSFET, 44 A, 80 V, 8-Pin WDFN ON Semiconductor NVTFS6H854NTAG
RS Stock No. 185-9264
Brand ON Semiconductor
Manufacturers Part No. NVTFS6H854NTAG
390 in stock in the UK
390 in stock in the UK
$ 0.602
Each (In a Pack of 10)
N-Channel MOSFET, 44 A, 80 V, 8-Pin WDFN ON Semiconductor NVTFS6H854NTAG
Buy in bulk
| quantity | Unit price |
|---|---|
| 10 - 90 | $ 0.602 |
| 100 - 490 | $ 0.420 |
| 500 - 990 | $ 0.365 |
| 1000 - 1490 | $ 0.310 |
| 1500+ | $ 0.309 |
Production pack (Reel)
Live stock
390 in stock in the UK
Specifications
Brand
ON Semiconductor
Channel Type
N
Maximum Continuous Drain Current
44 A
Maximum Drain Source Voltage
80 V
Package Type
WDFN
Mounting Type
Surface Mount
Pin Count
8
Maximum Drain Source Resistance
14.5 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
4V
Minimum Gate Threshold Voltage
2V
Maximum Power Dissipation
68 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±20 V
Number of Elements per Chip
1
Forward Diode Voltage
1.2V
Maximum Operating Temperature
+175 °C
Height
0.75mm
Width
3.15mm
Minimum Operating Temperature
-55 °C
Automotive Standard
AEC-Q101
Length
3.15mm
Typical Gate Charge @ Vgs
13 nC @ 10 V
Country of Origin
MY
