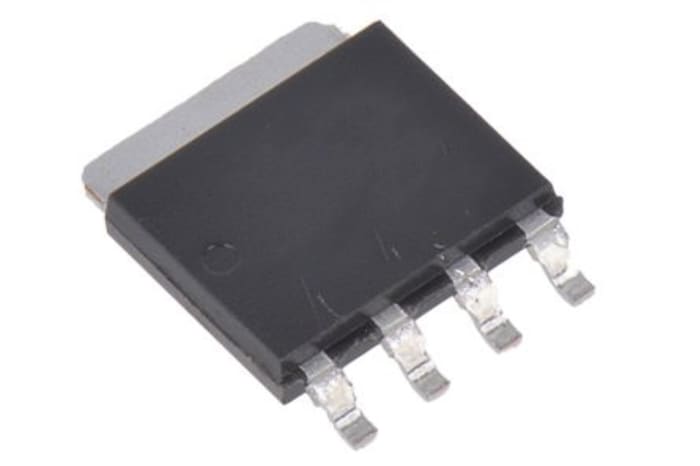

N-Channel MOSFET, 252 A, 40 V, 4-Pin LFPAK ON Semiconductor NVMYS1D3N04CTWG
RS Stock No. 185-9246
Brand ON Semiconductor
Manufacturers Part No. NVMYS1D3N04CTWG
3000 in stock in the UK
3000 in stock in the UK
$ 2.148
Each (In a Pack of 4)
N-Channel MOSFET, 252 A, 40 V, 4-Pin LFPAK ON Semiconductor NVMYS1D3N04CTWG
Buy in bulk
| quantity | Unit price |
|---|---|
| 4 - 8 | $ 2.148 |
| 12 - 96 | $ 1.839 |
| 100 - 248 | $ 1.423 |
| 252 - 496 | $ 1.396 |
| 500+ | $ 1.208 |
Production pack (Reel)
Live stock
3000 in stock in the UK
Specifications
Brand
ON Semiconductor
Channel Type
N
Maximum Continuous Drain Current
252 A
Maximum Drain Source Voltage
40 V
Package Type
LFPAK
Mounting Type
Surface Mount
Pin Count
4
Maximum Drain Source Resistance
1.15 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
3.5V
Minimum Gate Threshold Voltage
2.5V
Maximum Power Dissipation
134 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±20 V
Number of Elements per Chip
1
Height
1.2mm
Width
4.25mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.2V
Maximum Operating Temperature
+175 °C
Automotive Standard
AEC-Q101
Length
5mm
Typical Gate Charge @ Vgs
75 nC @ 10 V
Country of Origin
PH
