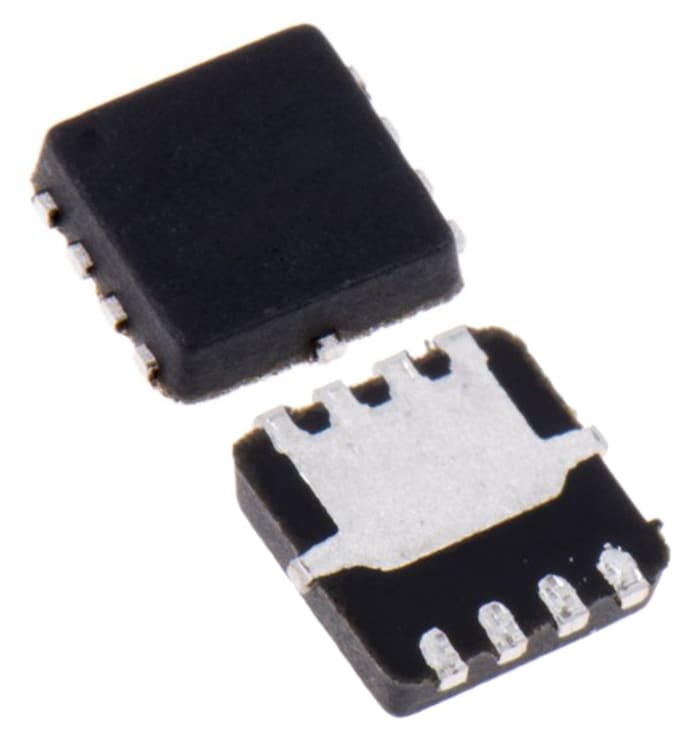

N-Channel MOSFET, 12 A, 80 V, 8-Pin WDFN ON Semiconductor NVTFS6H888NTAG
RS Stock No. 185-9125
Brand ON Semiconductor
Manufacturers Part No. NVTFS6H888NTAG
1410 in stock in the UK
1410 in stock in the UK
$ 0.553
Each (In a Pack of 6)
N-Channel MOSFET, 12 A, 80 V, 8-Pin WDFN ON Semiconductor NVTFS6H888NTAG
Buy in bulk
| quantity | Unit price |
|---|---|
| 6 - 6 | $ 0.553 |
| 12 - 96 | $ 0.446 |
| 102 - 498 | $ 0.313 |
| 504 - 996 | $ 0.259 |
| 1002+ | $ 0.211 |
Production pack (Reel)
Live stock
1410 in stock in the UK
Specifications
Brand
ON Semiconductor
Channel Type
N
Maximum Continuous Drain Current
12 A
Maximum Drain Source Voltage
80 V
Package Type
WDFN
Mounting Type
Surface Mount
Pin Count
8
Maximum Drain Source Resistance
55 mΩ
Channel Mode
Enhancement
Maximum Gate Threshold Voltage
4V
Minimum Gate Threshold Voltage
2V
Maximum Power Dissipation
18 W
Transistor Configuration
Single
Maximum Gate Source Voltage
±20 V
Number of Elements per Chip
1
Height
0.75mm
Width
3.15mm
Minimum Operating Temperature
-55 °C
Forward Diode Voltage
1.2V
Maximum Operating Temperature
+175 °C
Automotive Standard
AEC-Q101
Length
3.15mm
Typical Gate Charge @ Vgs
4.7 nC @ 10 V
Country of Origin
MY
